3M DBI-SALA® 7403060 SecuraSpan HLL 60 ft (18.3m) Lifeline Assembly, Includes Zorbit Energy Absorber, Saflok Carabiners

  • NG # 0758-HW-3M-012

  • MF # DBI-7403060

  • SKU # DBI-7403060

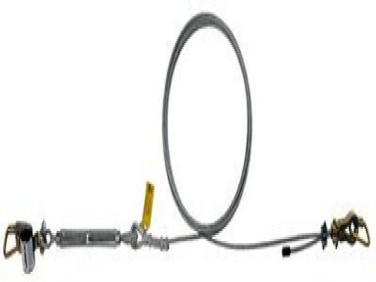

The 3M DBI-SALA® SecuraSpan™ 7403060 is a 60 ft (18.3 m) horizontal lifeline (HLL) cable subsystem designed to provide continuous horizontal mobility and fall protection for workers on elevated structures such as steel I-beams, bridges, and industrial platforms.

Manufactured By :
3M
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

It functions as the central cable assembly component in SecuraSpan™ horizontal fall arrest systems, allowing up to two workers to tie off simultaneously while traversing the span.

Specification

  • ParameterSpecification
    Model / Part Number7403060
    Brand / Series3M™ DBI-SALA® SecuraSpan™
    Lifeline Length60 ft (18.3 m)
    Cable Material & Size3/8 in (9.5 mm) Galvanized Steel (7x19 construction)
    Worker CapacityUp to 2 Workers per system span
    Energy AbsorberZorbit™ Shock Absorber (Limits loads to anchor points)
    Connecting HardwareSteel Saflok™ Carabiners & Turnbuckle
    System TypeHorizontal Lifeline (Subsystem Assembly)
    Operating Temperature-40°F to 130°F (-40°C to 54°C)
    Standards & ComplianceOSHA 1910.66, OSHA 1926.502, ANSI Z359.1
