3M DBI Sala 8301042 Advanced 7 ft. High Tripod System for Confined Space Entry, 60 ft Salalift II Winch and 50 ft. Sealed-Blok with Stainless Steel Cable,

NG # 0767-HW-3M-021
MF # 8301042
SKU # 8301042

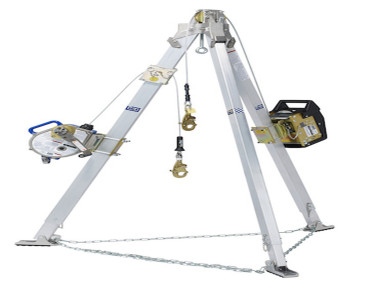

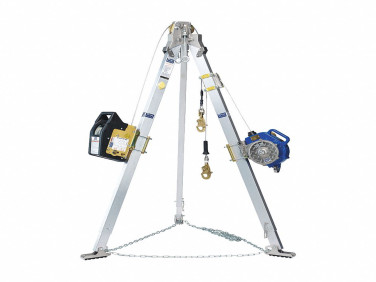

The 3M DBI-SALA 8301042 Advanced 7 ft. High Tripod System is a heavy-duty, integrated safety package engineered for manhole entry, vault access, and confined space rescue operations. It pairs a high-strength aluminum tripod with a dual mechanical system: a primary personnel winch for raising and lowering workers, and a self-retracting lifeline (SRL) for continuous fall protection.

Manufactured By :

3M

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This all-in-one system addresses the core safety requirements for confined space entry under OSHA standards. The lightweight, collapsible tripod provides a temporary overhead anchorage point above manholes or hatches. Mounted to its legs are two distinct mechanical devices: the Salalift™ II Winch for controlled entry and exit, and the Sealed-Blok™ SRL for dynamic fall arrest.

Specification

System Attribute	Specification
Model Number	8301042
Manufacturer	3M DBI-SALA
Tripod Height	7 ft. (2.13 m) working height
Tripod Material	Lightweight, high-strength aluminum alloy
Working Load Capacity	350 lbs (158 kg) for single person / equipment combined
Winch Type	Salalift™ II Manual Winch
Winch Lifeline	60 ft. (18.3 m) galvanised or stainless steel wire rope
SRL Type	Sealed-Blok™ Self-Retracting Lifeline
SRL Lifeline Length & Type	50 ft. (15.2 m) Stainless Steel Cable (3/16" / 5 mm diameter)
Footing / Base	Swivel feet with rubber pads, steel spikes, and leg safety chain
Anchorage Points	2 integrated top pulleys + 4 eyelet attachment points rated to 5,000 lbs (22 kN)
Standards & Compliance	OSHA 1910.146, OSHA 1926.502, ANSI Z359.1, ANSI Z359.14, ANSI Z359.4
