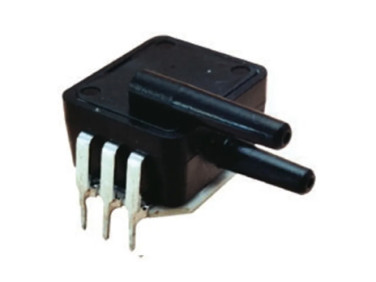

Honeywell Differential for Gas Pressure Sensor, 1psi Max Pressure Reading, 20 V dc

  • NG # 03069-HW-HONEYWELL-317

  • MF # SDX01D4

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Cost-effective solution for pressure applications that require small size plus performance.

For use with non-corrosive, non-ionic media, e.g. air and dry gases

Internally calibrated and temperature-compensated

The dual-in-line package features standard IC dimensions and pin spacing. It provides convenient mounting and pressure ports for ease of use with standard plastic tubing for pressure connection

Calibrated zero and span

High impedance for low-power applications

100μs response time

Operating temp. -40°C to +85°C

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specification

Pressure Reading TypeDifferential
Minimum Pressure Reading0psi
Maximum Pressure Reading1psi
Accuracy±0.2 %
Output TypeUnamplified
Media MeasuredGas
Electrical ConnectionPCB
Analogue Output17.37 → 18.18 mV
Response Time100 μs
Supply Voltage20 V dc
Minimum Operating Temperature-40°C
Maximum Operating Temperature+85°C
