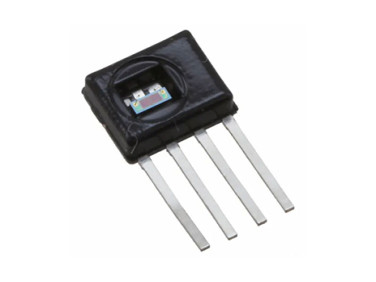

Honeywell HIH7000 Series Temperature & Humidity Sensor, Digital Output, Through Hole Mount, Serial-I2C, ±3%, 4 Pins

  • NG # 03102-HW-HONEYWELL-350

  • MF # HIH7120-021-001

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HIH-7000 series offers two units in one with a digital output-type relative humidity (RH) and temperature sensor combined into one package. The HIH-7000 offer an accuracy of ±3.0 %RH.

Potential Applications:
Industrial:
HVAC/R
Air compressors
Weather stations
Telecom cabinets
Incubators/microenvironments
Medical:
Respiratory therapy
Incubators/microenvironments


Features:
Industry-leading long term stability (1.2 %RH over five years)
Industry-leading reliability (MTTF 9,312,507 HR)
Combined humidity and temperature sensor
Energy efficient
High resolution
True, temperature-compensated digital I²C or SPI output


The Honeywell HIH7000 series humidity and temperature sensors. It has digital output-type relative humidity and temperature sensors combined in the same package. It is featured with industry leading long-term stability and reliability.


Energy efficiency
Lowest total cost solution
Ultra-small package size and options


For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.



Temperature & Humidity Sensors, Honeywell

Specification

Sensor FunctionTemperature & Humidity
Output TypeDigital
Interface TypeSerial-I2C
Accuracy±3%
Mounting TypeThrough Hole
Pin Count4
Operating Temperature Range-40 → 100 °C
Minimum Operating Temperature-40 °C
Maximum Operating Temperature+100 °C
Minimum Operating Supply Voltage2.3 V
Maximum Operating Supply Voltage5.5 V
Package TypeSIP
Length4.9mm
SeriesHIH7000
Height8.9mm
Width1.9mm
Dimensions4.9 x 1.9 x 8.9mm
