NG # 04400-HW-MCCOY-009

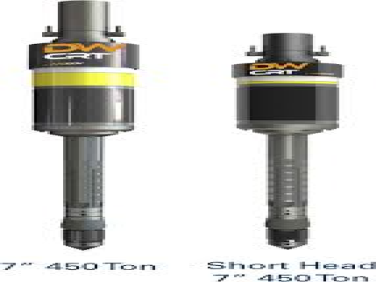

McCoy’s DWCRT represents a new family of casing running tools. These mechanically operated tools are both simple to operate and simple to maintain. The DWCRT was developed to make-up, rotate, reciprocate, fill, take flow-back, circulate and drill while running casing with a top drive. The DWCRT is designed to pick up, screw and torque the casing up to the string and run the string into the well while enabling rotating, reciprocating and circulating operations to be conducted on-the-fly.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe DWCRT reduces the tools and men needed to run casing compared to conventional techniques. The DWCRT allows the operator to reciprocate, rotate, and circulate simultaneously to help improve efficiency when running casing.
| Feature | DWCRT 450T | DWCRT 750T | DWCRT 1000T |
|---|---|---|---|
| API 8C Hoist Rating | 450 tons | 750 tons | 1,000 tons |
| Casing Size Range | 4.5" to 24" | 7-5/8" to 20" | 7-5/8" to 20"+ |
| Max Torque Capacity | 65,000 ft-lbs | 90,000 ft-lbs | 100,000 ft-lbs |
| Mechanical Actuation | No hydraulics needed | No hydraulics needed | No hydraulics needed |
