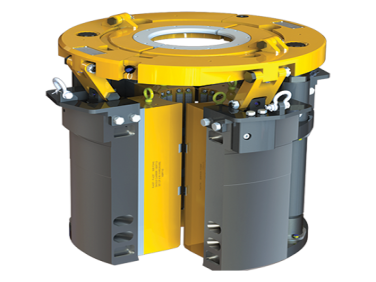

Mccoy Global new smartFMS Flush Mounted Spider

  • NG # 04398-HW-MCCOY-007

McCoy’s FMS 500 Ton is unique to the industry, engineered to handle both casing and drill pipe with precision.

Manufactured By :
Mccoy Global
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Featuring interchangeable die carriers and delivering up to 100,000 ft.lbs. of back-up torque from the first joint, it eliminates the need for manual backup tongs—setting a new benchmark in safety, efficiency, and versatility.



Specification

MAXIMUM TENSION RATING
500 TONS
454 TONNES

MAXIMUM WORKING PRESSURE
3000 PSI
207 BAR

FLOW RATE REQUIRED
30 GPM
114 LPM

MASS (TOOL ONLY)
4033 LBS
1829 KG

MASS RANGE (CARRIERS AND GUIDE PLATES INCLUDED)
4285 - 5960 LBS
1944 - 2703 KG

TIME TO EXTEND AND RETRACT
6 SECONDS

COMPATIBLE ROTARY TABLE
37 1/2” / EMSCO 3750

CASING SIZE RANGE
4.000”
20.000”
