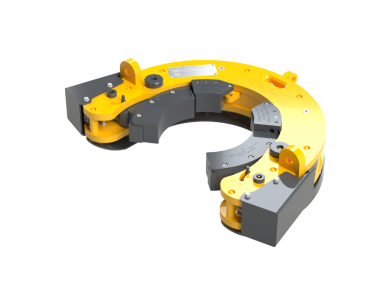

The McCoy Single-Joint Elevator (mSJE) is designed in accordance with API requirements for handling API 5CT-compliant casing and tubing.
It features a modular over-centre jaw design with interchangeable inserts to accommodate a range of tubular sizes and is intended for use with couplings or lift nubbins with square-shouldered profiles to lift and stab individual joints or stands
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe mSJE works in tandem with the McCoy Link-Tilt System (LTS), which applies the load required to actuate the over-centre jaws when engaging or releasing the pipe.
Parameter | mSJE – 7″ | mSJE – 9.625″ | mSJE – 13.625” | mSJE – 20″ |
Grip Range (in) | 4.5 – 7 | 7 – 9.625 | 10.75 – 13.625 | 16 – 20 |
Working Load Limit (U.S. ton) | 5 | 5 | 7.5 | 10 |
Mass (lbs) | 170 | 200 | 250 | 320 |
Width “W” (in) | 18.5 | 21.5 | 24 | TBD |
Height “H” (in) | 8.5 | 9 | TBD | |
Length “L” (in) 27.5 | 27.5 | 33 | TBD | |
Max Operating Pressure (psi) | 120 | 120 | 120 | 120 |
Recommended Operating Pressure (psi) | 80 – 100 | |||
Operating Temperature (°C) | -20 – 65 | |||
