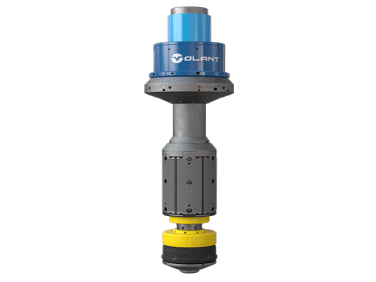

Mccoy Global smartCRT Casing Running Tool

  • NG # 04394-HW-MCCOY-003

The smartCRT Hydraulic External from McCoy Global is an advanced hydraulic casing running tool engineered to improve safety, efficiency, and operational control during casing operations. Designed with integrated smart technology, wireless operation capability, and modular functionality, the tool enables make-up, rotation, reciprocation, circulation, and casing while drilling applications with enhanced precision and reduced manpower requirements.

Manufactured By :
Mccoy Global
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The smartCRT Hydraulic External is part of the advanced smart product portfolio developed by McCoy Global for modern drilling and tubular running operations. The system combines hydraulic power with intelligent digital integration to streamline casing running activities while improving operational safety and repeatability. Through wireless controls and real-time communication with the driller’s display, operators can manage critical functions remotely, helping reduce personnel exposure in high-risk rig floor areas.

Its modular construction allows the tool to adapt to various casing applications and operational environments. The smartCRT Hydraulic External supports make-up, circulation, rotation, reciprocation, and casing while drilling operations, making it a versatile solution for both land and offshore projects. The tool also integrates with the smarTR platform, enabling digital monitoring, operational reporting, and improved workflow automation.

The system is engineered with features such as a large gripping area, wireless remote operation, integrated torque-turn system, dynamic bails, and a link tilt system to maximize handling performance and safety. Its compatibility with multiple mandrel sizes and interchangeable accessories helps reduce inventory requirements and maintenance costs while increasing operational flexibility.

Specification

  • Product Type: Hydraulic External Casing Running Tool
  • Application: Casing running, make-up, reciprocation, rotation, circulation, and casing while drilling
  • Operation Type: Hydraulically operated with wireless control capability
  • Control System: Integrated digital driller display with remote operation support
  • Maximum Torque: 90,000 ft-lbs
  • Maximum Hydraulic Pressure: 3,000 psi
  • Set Down Weight: 100,000 lbs
  • Maximum Rotation Speed: 200 RPM
  • Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
  • Integrated Features: Torque Turn System (NGTTS), bearing sensors, dynamic bails, link tilt system
  • Compatibility: Supports multiple mandrel sizes from 4.5” to 30”
  • Design: Modular and interchangeable component architecture
  • Safety Features: Wireless remote operation and reduced red-zone exposure
  • Monitoring Capability: Real-time operational data and performance monitoring
  • Maintenance: Low-maintenance modular configuration
  • Integration: Compatible with smarTR automated tubular running system
  • Available Configurations: 140 Ton, 225/300 Ton, 450 Ton, and 750 Ton models
