NG # 04393-HW-MCCOY-002

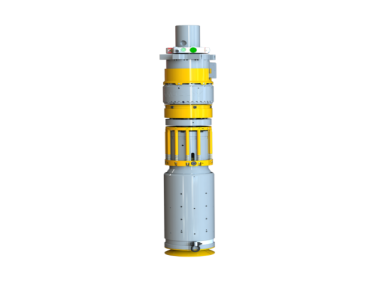

The smartCRT Hydraulic External from McCoy Global is an advanced hydraulic casing running tool designed to improve safety, efficiency, and operational control during tubular running operations. Featuring a modular hydraulic design, wireless control capability, integrated torque turn system, and remote operational features, the tool enables seamless casing make-up, rotation, reciprocation, filling, circulation, and casing while drilling applications in demanding oilfield environments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe smartCRT Hydraulic External is a next-generation casing running solution engineered by McCoy Global to streamline tubular running operations while enhancing personnel safety and operational repeatability. Built with a hydraulically operated modular system, the tool supports a wide range of casing applications including make-up, circulation, reciprocation, and casing while drilling operations.
The system integrates advanced digital functionality through McCoy’s smarTR-ready platform, enabling wireless communication, remote operational control, and real-time interaction through the driller’s display. Its wireless operation helps reduce personnel exposure in hazardous rig floor zones while improving workflow efficiency. The tool also features a large gripping area for improved hook load capacity without compromising casing integrity.
The smartCRT Hydraulic External includes dynamic bails, a link tilt system, and optional wireless belly pack controls to maximize operational flexibility. Its modular architecture allows compatibility with multiple mandrels and accessories, reducing inventory costs and simplifying maintenance requirements. Designed for rugged oilfield environments, the system delivers high torque performance, reliable repeatability, and enhanced asset utilization across various casing sizes and operational conditions.
| Modular Versatility | Designed to meet all casing application requirements and adaptable to various use cases. |
| Large Gripping Area | Increased Hook Load rating while maintaining casing integrity. |
| Bearing Sensors | Used to monitor bearing performance |
| Set Down Weight | 100,000 lbs |
| Max Rotation Speed | 200 RPM |
| Operating Temperature | (-40 to 140 °F) (-40 to 60 °C) |
| Link Tilt System | Dynamic Bails for extended reach and optimization |
| Wireless Operation | “Clear the Floor” Operational safety |
| Max Torque | 90,000 ft-lbs |
| Max Hydraulic Pressure | 3,000 psi |
| Integrated Torque Turn System (NGTTS) | NGTTS sub can be removed for easy calibration |
| Size Range | 4-1/2” to 7-3/4” |
