NG # 04397-HW-MCCOY-006

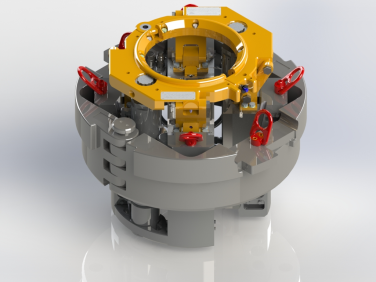

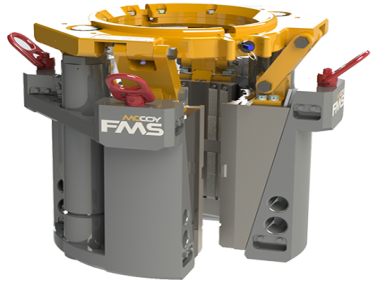

McCoy’s smartFMS™ is a rotary equipment developed to handle casing using replaceable die carriers and provides back-up torque of up to 50,000 ft.lbs. from first pipe joint, hence removing the need for integrated backups and manual tongs.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThis is a fully connected device that in real-time provides information on the state of the tool to the driller’s display (also used with a smartCRT™). Both tools are constantly monitored, providing enhanced safety and reassurance that these are not open at the same time. smartFMS™ increases efficiency and safety by eliminating human error and guaranteeing consistency and repeatability of operations.
| Max Tension Rating | 350 Tons (317 Tonnes) | 500 Tons (454 Tonnes) |
| Max Working Pressure | 2,000 PSI (138 Bar) | 3,000 PSI (207 Bar) |
| Max Back-up Torque | 50,000 ft-lbs | Up to 100,000 ft-lbs |
| Flow Rate Required | 34 GPM (128 LPM) | 30 GPM (114 LPM) |
| Casing/Pipe Range | 2 3/8" – 13 5/8" | 2 3/8" – 13 5/8" |
| Tool Mass (Only) | 2,900 lbs (1,315 kg) | 4,033 lbs (1,829 kg) |
| Cycle Time | 6 seconds (extend/retract) | N/A |
