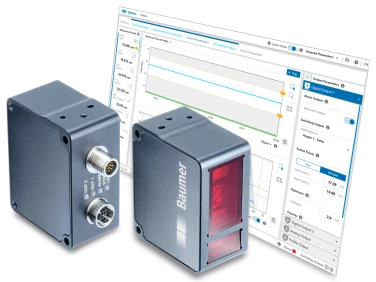

OXS200-B02A.E02 Smart Profile Sensor

  • NG # 024630-HW-BCID-030

OXS200-B02A.E02 Smart Profile Sensor enables precise edge detection with built-in Smart Profile tools. Featuring ROI tracking, measurement presets, and multiple interfaces, it ensures flexible integration and reliable performance in industrial automation and inspection applications with compact one-box design.



Manufactured By :
Baumer
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The OXS200-B02A.E02 Smart Profile Sensor is an advanced optical sensing system designed for accurate edge detection and profile analysis. It offers intuitive configuration through an integrated webserver, supporting fast setup and visualization. With ROI tracking, step detection presets, and combined measurement evaluation, it delivers flexible performance. Its compact one-box design and multi-protocol interface support make it ideal for modern industrial automation and quality control systems.

Specification

Type: 2D Smart Profile Sensor (edge + geometry measurement)

Measurement Performance

Measurement Range (MR): 25 mm

Clearance Distance: 60 mm

Working Range: 60 … 85 mm

Reference Distance: 72.5 mm

Field of View: 20 … 28 mm

Resolution & Accuracy

X Resolution: 30 … 40 µm

Z Resolution: ~5 µm

Repeat Accuracy (Z): 2 µm

Linearity Error: ±0.1 % of measurement range

Temperature Drift: ±0.04 %/K

Optical System

Light Source: Blue laser

Wavelength: 405 nm

Laser Class: Class 2

Max Laser Power: 18 mW

Beam Shape: Line (approx. 28 mm length)

Performance

Profile Rate: 100 … 400 Hz

Profile Points: ~700 pixels

Electrical Data

Supply Voltage: 18 … 30 VDC

Power Consumption: ~2.4 W

Connector: M12 (12-pin + Ethernet port)

PoE Support: Yes (IEEE 802.3af)

Mechanical Data

Housing Material: Aluminum + glass front

Dimensions: 36 × 74 × 60 mm

Weight: ~270 g

Environmental

Operating Temperature: 0 … +45 °C

Storage Temperature: −10 … +60 °C

Protection Class: IP65

Humidity: 20 … 85 %
