NG # 0865-HW-3M-120
MF # 3100523

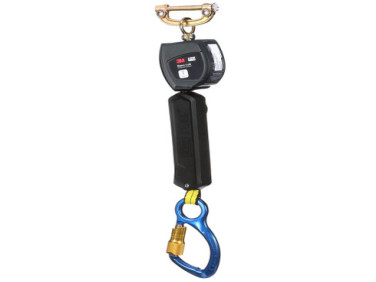

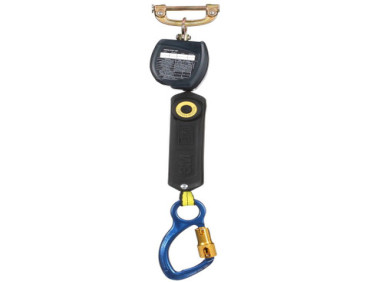

The 3M DBI-SALA 3100523 Nano-Lok™ Personal Self-Retracting Lifeline (SRL) is a compact, lightweight fall protection device designed to provide reliable personal fall arrest protection while allowing workers greater freedom of movement. This single-leg, 6 ft. (1.8 m) web lifeline is equipped with an aluminum carabiner and a built-in single-pin connector for direct attachment to compatible full-body harnesses. It is classified as an ANSI/ASSP Z359.14-2021 Class 1 SRL.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A Quote| Specification | Details |
|---|---|
| Manufacturer | 3M |
| Brand | DBI-SALA® |
| Product Series | Nano-Lok™ |
| Model / Mfg. No. | 3100523 |
| Product Type | Personal Self-Retracting Lifeline |
| Configuration | Single-leg |
| ANSI Classification | Class 1 |
| Lifeline Length | 6 ft. (1.8 m) |
| Lifeline Material | Web |

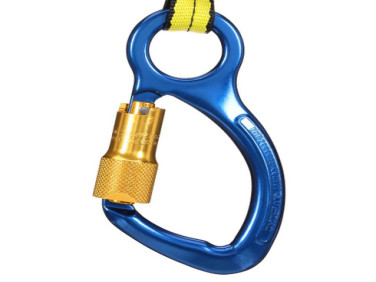

| Lifeline Connection | Aluminum carabiner |
| Harness Connection | Single-pin connector |
| Housing Material | Nylon thermoplastic |
| Installation | Portable and removable |
| Mounting | Direct to harness back |
| Weight | Approx. 0.98 kg (2.16 lb.) |
| Maximum User Capacity | 420 lb. (190 kg), subject to applicable configuration/limitations |
| Average Arrest Force | 5 kN (1,125 lbf) |
| Maximum Arrest Force | 8 kN (1,800 lbf) |
| Working Length | 4.6 ft. (1.4 m) |
| Maximum Users | 1 |
| Brake System | Quick-activating speed-sensing brake |
| Energy Absorber | External, high-capacity |
| Impact Indicator | Integrated |
| RFID / CSID | Equipped |
| Typical Use | General industrial, construction, maintenance, manufacturing, utilities and other work-at-height applications |
