DBI SALA Roof Top Anchor For Standard Membrane and Built-Up Roofs, With Weather Proof Shroud, Mfg# 2100139

  • NG # 0808-HW-3M-062

  • MF # 2100139

  • SKU # 2100139

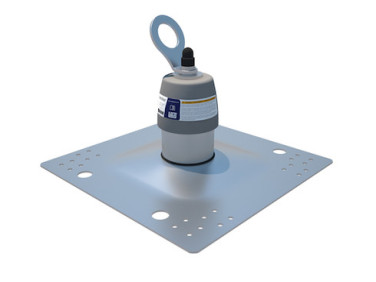

The 3M™ DBI-SALA® Roof Top Anchor for Standard Membrane and Built-Up Roofs (Mfg# 2100138 / 2100140 Series) is a specialized fall protection anchorage post designed for permanent installation onto flat or low-slope commercial roofs without compromising water tightness.

Manufactured By :
3M
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

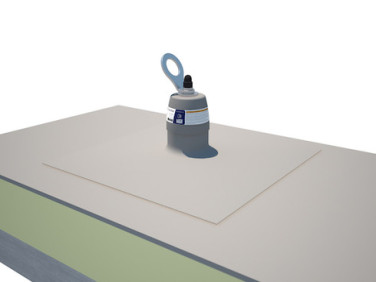

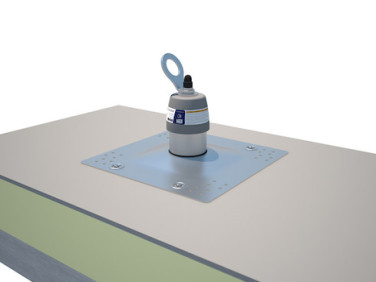

Engineered specifically for single-ply membrane (TPO, EPDM, PVC) and built-up/bitumen roofing systems, this post-style anchor attaches directly through the roof insulation layers into the underlying deck (steel, concrete, or wood). Its defining feature is an integrated weather-proofing shroud and base plate design that allows roofing contractors to hot-air weld or bitumen-seal the flashing shroud around the post, creating a completely watertight seal that preserves building integrity and roof warranties.

Specification

SpecificationDetails
Product Line3M™ DBI-SALA® Permanent Rooftop Anchor Series
Roofing CompatibilitySingle-Ply Membrane (EPDM, TPO, PVC) and Built-Up / Bituminous Roofs
Structural Deck TypesSteel (min 22 gauge), Reinforced Concrete, or Wood Decking
User Working Capacity1 Person (310 lbs / 140 kg max weight capacity)
Minimum Breaking Strength5,000 lbs (22.2 kN) rated anchorage strength
Energy AbsorptionIntegrated internal deformation load-limiting post
Attachment Eyelet360-Degree Swivel Stainless Steel D-Ring / Eyelet
Post ConstructionGalvanized steel base / stainless steel top swivel ring
Weatherproofing InterfaceHeavy-duty conical shroud for direct membrane flashing
Standards & ComplianceANSI Z359.18 (Type A), OSHA 1910.66, OSHA 1926.502
