3M DBI-SALA 8530267 SecuraSpan Fasten-in-Place HLL Bolt-on Floor

  • NG # 0781-HW-3M-035

  • MF # 8530267

  • SKU # 8530267

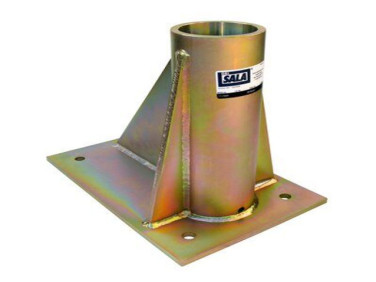

The 3M DBI-SALA 8530267 SecuraSpan Fasten-in-Place Bolt-On Floor Base is a heavy-duty structural base component designed to secure SecuraSpan horizontal lifeline (HLL) stanchions to concrete or steel flooring structures.

Manufactured By :
3M
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Part of the modular 3M DBI-SALA SecuraSpan horizontal lifeline series, the 8530267 base allows vertical stanchions to be mounted directly onto concrete decking, slab floors, or steel surfaces. Once bolted in place, it creates a rigid, reliable anchorage foundation for stringing horizontal cable lifelines, enabling workers to traverse open edges or elevated decks with continuous fall protection.

Specification

SpecificationDetails
Model Number8530267
Product Line3M DBI-SALA® SecuraSpan™ Series
Component TypeFasten-In-Place Bolt-On Floor Base
ApplicationHorizontal Lifeline (HLL) Stanchion Anchor Base
Substrate CompatibilityStructural Concrete Slabs, Decking, or Steel Beam Flanges
MaterialHigh-Strength Structural Steel
Finish / CoatingZinc-plated / Corrosion-resistant coating
System CapacitySupports multi-worker horizontal lifeline systems (typically up to 2 workers per span, subject to system design)
Standards & ComplianceOSHA 1910.66, OSHA 1926.502, ANSI Z359.1 requirements when integrated into an approved 3M SecuraSpan system
