Honeywell 8-Channel LCM

  • NG # 00938-HW-HNWEL-058

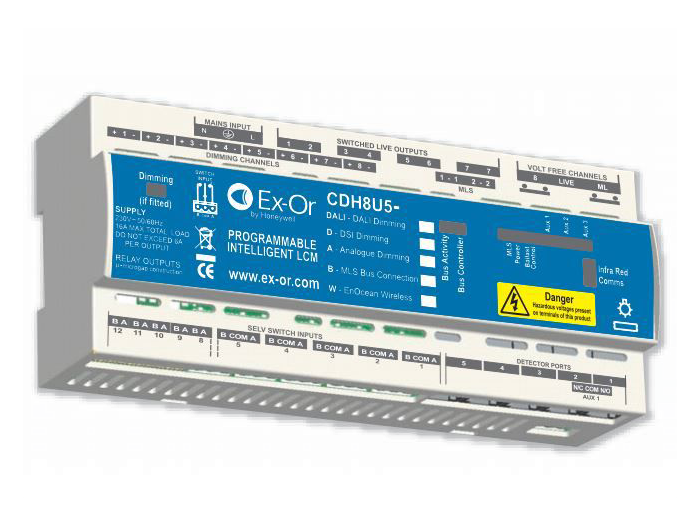

CDH8U5-series is a 8-Channel by Ex-Or, programmable, intelligent Lighting control module. The CDH8U5 is designed to simplify installation whilst providing an intelligent managed lighting system

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

CDH8U5 is an intelligent Lighting Control Module providing connections for multiple luminaires, up to 5 presence detectors and up to 10 SELV inputs. Provision is made for 7 switched live outputs plus one volt-free power output. The unit features a switched output for Maintained Live to allow initiation of Emergency Lighting Test.

Specification

Specification

  • Multiple SELV Occupancy Detector Inputs (Remote and Luminaire Integral Options)
  • Multiple SELV User Override Switch / Volt-Free Contact Inputs
  • Signal level Volt-Free Outputs
  • Multiple Independently Controllable Switching and Dimming Luminaire Drive Outputs
  • Fully flexible mapping of Occupancy Detector and Switch Inputs to Luminaire Outputs
  • Maintained Live Disconnect for Emergency Lighting Test Mode Initiation
  • Quicker and easier installation
  • Greater flexibility and detectors can be sof’ adjusted without major disruption
  • Operation from dual supplies with automatic changeover (option for 4-channel variant)
  • Simple programming changes are made via an infrared programmer

CATALOGS

8-Channel LCM Manual
