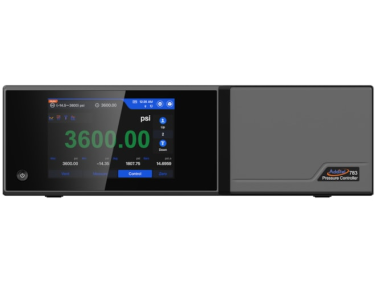

Additel ADT 783 Pressure Controller

  • NG # 02868-HW-ADDITEL-008

  • MF # ADT 783

Three selectable base units with pressure ranges from -14.35 to 3,600 psi.

Manufactured By :
Additel
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

These modular pressure controllers combine cutting-edge control/measurement technology, modular design, and user-friendly features. The Additel 783 controller series is optimized for high speed to pressure without compromising accuracy and stability.  For users who require automated production, test, and calibration, Additel has the workload covered with these pressure controllers. The ADT783 can be quickly outfitted with two controlling modules and one reference barometric module to cover a wide pressure range.  The Additel 783 series offers three base units to choose from, which range from 3500 psi (250 bar) down to low pressure differential.

Specification

  • Max. pressure range:
    • ADT783-D: 35 psi
    • ADT783-1K: 1,000 psi
    • ADT783-3.6K: 3,600 psi
  • Min. pressure range: -14.35 psi for all units
  • Precision:
    • ADT783-D:
      • 0.015% FS (DP2 to DP5)
      • 0.025% FS (DP10 to DP1K)
    • ADT783-1K:
      • 0.01%FS, 0.007% FS, or 0.008% RD
    • ADT783-3.6K:
      • 0.01% FS, 0.007% FS, or 0.007% RD
  • Accuracy:
    • ADT783-D:
      • 0.015% FS (DP2 to DP5)
      • 0.025% FS (DP 10 to DP1K)
    • ADT783-1K:
      • 0.01% FS, 0.007% FS, or 0.008% RD
    • ADT783-3.6K:
      • 0.02% FS, 0.01% FS, or 0.01% RD
  • <0.003% FS control stability, typically 0.001% FS
  • <10s control response time
  • Optional barometric pressure module

Other Additel Products

Additel 227 Multifunction Process Calibrator
Additel Industrial Tools & Accessories 02866-HW-ADDITEL-006

Additel ADT680P Digital Pressure Gauge
Additel Industrial Tools & Accessories 02890-HW-ADDITEL-030

Additel ADT 760 Series Pressure Calibrator
Additel Industrial Tools & Accessories 02865-HW-ADDITEL-005

Additel ADT 780 Pressure Controller
Additel Industrial Tools & Accessories 02879-HW-ADDITEL-019

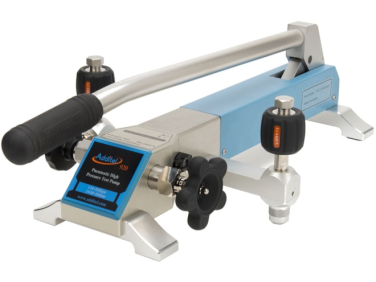

Additel ADT 918 Pneumatic Pressure Test Pump
Additel Industrial Tools & Accessories 02880-HW-ADDITEL-020

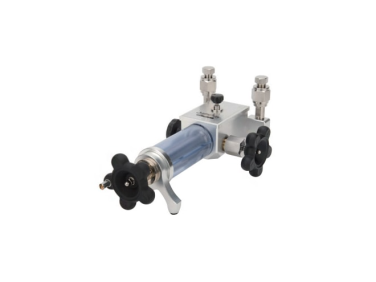

Additel ADT 916A Pressure Test Pump
Additel Industrial Tools & Accessories 02871-HW-ADDITEL-011

Additel ADT 925 High Pressure Test Pump
Additel Industrial Tools & Accessories 02881-HW-ADDITEL-021

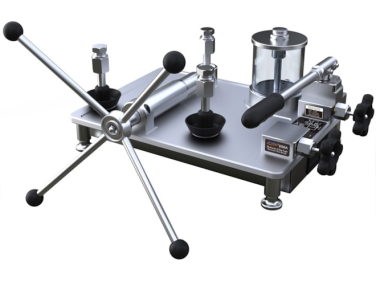

Additel ADT 959A Hydraulic Ultra-High Pressure Test Pump
Additel Industrial Tools & Accessories 02872-HW-ADDITEL-012

Additel ADT875 Dry Block Calibrator
Additel Industrial Tools & Accessories 02862-HW-ADDITEL-002

Additel ADT 960 Hydraulic Pressure Test Pump
Additel Industrial Tools & Accessories 02888-HW-ADDITEL-028

Additel ADT850 Laboratory Thermocouple Calibration Furnace
Additel Industrial Tools & Accessories 02887-HW-ADDITEL-027

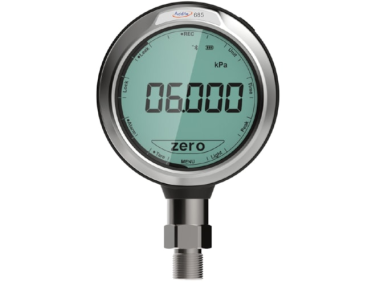

Additel ADT685 Digital Pressure Gauge
Additel Industrial Tools & Accessories 02876-HW-ADDITEL-016

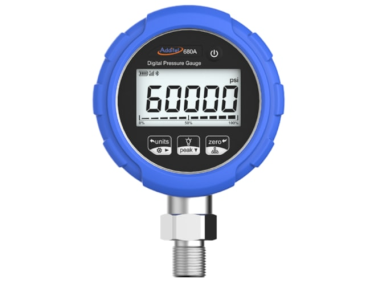

Additel ADT680A Digital Pressure Gauge
Additel Industrial Tools & Accessories 02861-HW-ADDITEL-001

Additel ADT686 Digital Pressure Gauge
Additel Industrial Tools & Accessories 02869-HW-ADDITEL-009

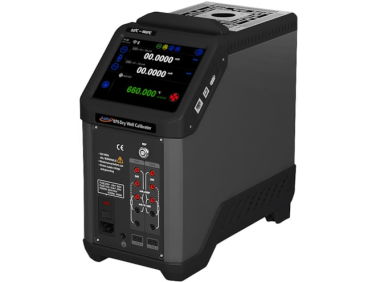

Additel ADT878 Dry Well Calibrator
Additel Industrial Tools & Accessories 02870-HW-ADDITEL-010

Additel Model 928A Hydraulic Pressure Test Pump
Additel Industrial Tools & Accessories 02877-HW-ADDITEL-017

Additel ADT 161 Intelligent Digital Pressure Module
Additel Industrial Tools & Accessories 02889-HW-ADDITEL-029

Additel ADT 920 and 920HV High Pressure Test Pumps
Additel Industrial Tools & Accessories 02882-HW-ADDITEL-022

Additel ADT681A Digital Pressure Gauge
Additel Industrial Tools & Accessories 02873-HW-ADDITEL-013

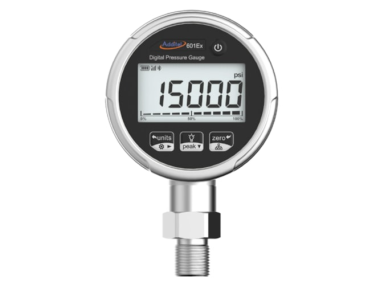

Additel ADT601Ex Digital Pressure Gauge
