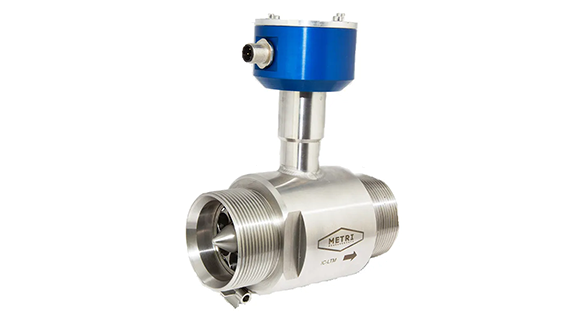

FloClean Sanitary Turbine Flow Meter

  • NG # 0718-HW-BLA-003

The Blancett® FloClean Sanitary Turbine flow meter provides the high accuracy and rigorous design of the standard Blancett turbine in a sanitary-style tri-clamp mounting configuration.

Manufactured By :
Badger Meter
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Blancett FloClean turbine flow meter comes with a tri-clover end fitting for pre-process food and beverage applications that require high accuracy without 3-A approval, or with a sanitary clamp end for use in clean-out-of-place (COP) and sanitize-out-of-place (SOP) applications. Their 316L stainless steel construction provides a durable and cost efficient flow measurement system that offers excellent accuracy and repeatability.

The meter's output signal is a sine-wave that is proportional to volumetric flow. With optional Blancett electronics, the Blancett FloClean turbine flow meter provides local flow rate and volume totalization and will interface with most displays, PLCs, and computers.

Operating Principle
Fluid entering the meter first passes through an inlet flow straightener that reduces its turbulent flow pattern. Fluid then passes through the turbine, causing the turbine to rotate at a speed proportional to fluid velocity. As each turbine blade passes through the magnetic field generated by the meter's magnetic pick-up, an AC voltage pulse is generated. These pulses provide an output frequency that is proportional to volumetric flow.

Specification


316L stainless steel body and wetted parts
  • Nickle bindery tungsten carbide bearings & shaft
  • Nickel-plated CD4MCU stainless steel
±1.0% of reading accuracy±0.1% repeatability-150 to 300°F (-100 to 149°C) turbine temperature5-Point NIST traceable calibration
  • Certificate sold separately
