NG # 00400-HW-BATEC-0157
MF # SP9EX1

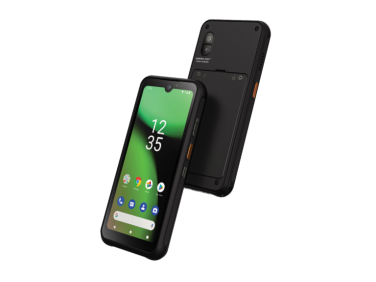

The BARTEC SP9EX1 Smartphone Cam version is an intrinsically safe smartphone and camera system designed for professional communication, inspection, documentation, and data collection in hazardous industrial environments. It is certified for ATEX/IECEx Zone 0/1/21 and NEC/CEC Class I, II, III Division 1 applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Cam version combines a 48 MP rear camera, 8 MP front camera, and 4K video recording with a rugged 6.1-inch AMOLED display. It uses a Qualcomm QCM6490 octa-core processor, 8 GB RAM, 128 GB storage, Wi-Fi 6, Bluetooth 5.2, NFC, and GNSS. The device is designed for applications such as oil & gas, chemical processing, pharmaceuticals, energy, manufacturing, and industrial inspection, where conventional smartphones may not be suitable.
The current Cam version runs Android 15 and is designed around a compact, rugged form factor with IP68 protection and MIL-STD-810H durability.
| Part Number | 17-S19P-31110112 |
| Device Type | Intrinsically Safe Smartphone / Camera |
| Processor | Qualcomm® QCM6490 Octa-Core, 2.7 GHz |
| RAM | 8 GB |
| Storage | 128 GB |
| Operating System | Android™ 15 |
| Display | 6.1-inch AMOLED |
| Resolution | 1080 × 2340 pixels |
| Front Glass | Gorilla® Glass Victus® |
| Touchscreen | Capacitive; supports stylus, bare finger, and gloved operation |
| Rear Camera | 48 MP autofocus |
| Rear Video | 4K UHD at 30 fps; 1080p up to 120 fps |
| Front Camera | 8 MP fixed focus |
| Front Video | 1080p at 30 fps; 720p at 60 fps |
| Rear Camera Zoom | Digital 8× |
| Wireless LAN | Wi-Fi 6, IEEE 802.11a/b/g/n/ac/ax, 2×2 MU-MIMO |
| Bluetooth | Bluetooth 5.2 |
| NFC | NFC read/write, card emulation and contactless functions |
| GNSS | GPS, A-GPS, GLONASS, Galileo, BeiDou |
| Battery | 3.68 V / 4300 mAh, 15.8 Wh Li-ion |
| Dimensions | 168.7 × 83.4 × 17.9 mm |
| Weight | Approx. 350 g including battery |
| Protection | IP68 |
| Ruggedness | MIL-STD-810H |
| Operating Temperature | -20°C to +55°C |
| USB | USB-C |
| Programmable Buttons | 2 function buttons; suitable for PTT, emergency call or other functions |
| Sensors | Accelerometer/Gyroscope, Magnetometer/Compass, Barometer, Proximity, Ambient Light |
| Hazardous Area Certification | ATEX/IECEx Zone 0/1/21; NEC/CEC Class I, II, III Division 1 |
| Camera Capability | 48 MP still images, 8 MP front camera and 4K video |
| Typical Applications | Inspection, maintenance, field service, asset documentation, remote support and industrial communication |
