NG # 006302-HW-Dräger-002

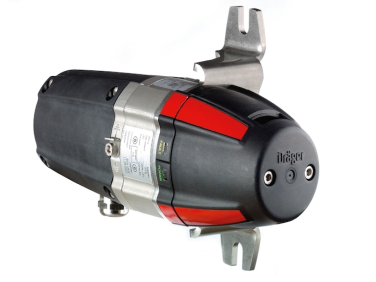

This detector offers fast, accurate detection of combustible gas concentrations using dual-beam or infrared optical sensing principles. The drift-free optics minimize maintenance needs and ensure long-term measurement stability. Designed to withstand harsh industrial settings, the unit features a robust enclosure resistant to vibration, corrosion, and temperature fluctuations. Suitable for oil & gas, chemical processing, petrochemical plants, and other high-risk applications, it provides dependable early-warning capability to prevent fires, explosions, and operational disruptions.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteAn explosion-proof point infrared gas detector is engineered for continuous monitoring of flammable gases and vapours in industrial environments. Built for hazardous areas, it uses advanced infrared absorption technology to provide stable, drift-free measurement even under demanding conditions. Its rugged construction and explosion-proof housing ensure reliable operation and safety in areas with high ignition risks.
| Type | Transmitter |
|---|---|
| Measuring Principle | Infrared |
| Response time | < 1 second (fast response) |
| Cable entry | M25 or 3/4" NPT |
| Display | No |
| Intrinsic Safety | No |
| Flameproof | Yes |
| Increased Safety | Yes |
| SIL | SIL 2 (IEC 61508-1-3) |
| 4-20 mA | Yes |
| Bus | No |
| HART® | Yes |
| Wireless | No |
| Power Supply | 13 to 30 VDC |
|---|---|
| Temperature (operation) | -40°C - 77°C |
| Humidity | 0 to 100% r.h. |
| Pressure (hPa) | 700 - 1300 |
| Dimensions (H × W × D) | 16x8.9x8.9 cm |
| Weight | 2.2 Kg |
| Housing Material | Stainless steel SS 316L |
| Degree of protection (IP class) | IP66/67 |
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | Yes |
| CSA | Yes |
| CE marking | Yes |
| GOST (EAC) | No |
| Performance approval | Yes |
| Shipping approval | Yes |
| FM | No |
