Functional Safety Liquid Flow Meter – FLUXUS F808 SIL

  • NG # 05680011-HW-FLEXIM-011

Functional Safety Liquid Flow Meter – FLUXUS F808 SIL is a non-intrusive ultrasonic flow meter designed for demanding liquid applications. Its complete SIL 2 certification, explosion-proof field device, clamp-on installation, comprehensive diagnostics, and robust design support reliable flow measurement in highly pressurized, aggressive, toxic, and potentially explosive environments.

Manufactured By :
Flexim
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Flexim FLUXUS F808 SIL provides functional-safety flow measurement for liquids without penetrating or modifying the process pipe. Its SIL 2 certification covers the complete measuring system, including the transmitters and transducers, while the transducers, clamp device, and electronics are included in the FMEDA. The system supports straightforward retrofit during ongoing operation, functional testing, and self-diagnostics. An explosion-proof field device enhances suitability for hazardous environments, while optional radiation-resistant transducers extend its application to nuclear industry requirements.

Specification

Fluid Type: All Liquids
Accuracy: ±1.6% reading ±0.01 m/s; measuring point ±0.5% reading ±0.01 m/s
Repeatability: 0.15% reading ±0.01 m/s
Flow Channels: 1
Flow Velocity Range: 0.01–25 m/s (0.03–82 ft/s)
Approvals: SIL 2; FM Class I Div. 1/2; ATEX/IECEx Zone 1
Power Supply: 100–230 VAC; 20–32 VDC
Pipe Size: 10–6500 mm (0.4–255.9 in.)
Pressure Range: —
Media Temperature: -55 to +180°C (-67 to +365°F); WI up to +630°C (+1166°F)
Output: 4–20 mA Passive (SIL); Binary: Alarm/Pulse

Other Flexim Products

Process Refractometer Transmitter – PIOX R532
Flexim Industrial Tools & Accessories 05680009-HW-FLEXIM-009

Flexim FLUXUS G801 SIL Safety Flow Meter
Flexim Industrial Tools & Accessories 05680006-HW-FLEXIM-006

FLUXUS F736 4-Beam Liquid Flow Meter
Flexim Industrial Tools & Accessories 05680005-HW-FLEXIM-005

Portable Clamp-on Ultrasonic Flow and Energy Meter – FLUXUS G631 EE
Flexim Industrial Tools & Accessories 05680007-HW-FLEXIM-007

FLUXUS F608 Portable Ultrasonic Flow Meter
Flexim Industrial Tools & Accessories 05680002-HW-FLEXIM-002

FLUXUS G631 EE – Portable Ultrasonic Flow Meter
Flexim Industrial Tools & Accessories 05680001-HW-FLEXIM-001

Non-Intrusive Ultrasonic Flow Meter – FLUXUS H721
Flexim Industrial Tools & Accessories 05680008-HW-FLEXIM-008

Flexim PIOX R500-*C-S4 Process Refractometer Sensor
Flexim Industrial Tools & Accessories 05680010-HW-FLEXIM-010

High-Temperature Steam Flow Meter – FLUXUS G831 ST-HT
Flexim Industrial Tools & Accessories 05680003-HW-FLEXIM-003

Flexim PIOX R500 MH Process Refractometer Sensor
Flexim Industrial Tools & Accessories 05680012-HW-FLEXIM-012

FLUXUS F532 TE Thermal Energy Meter
Flexim Industrial Tools & Accessories 05680004-HW-FLEXIM-004

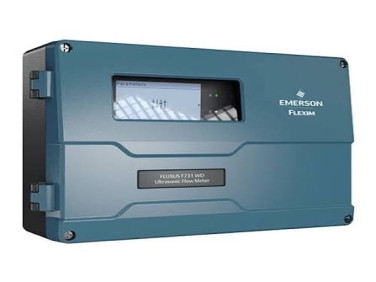

Flexim FLUXUS F731 WD - Stationary Ultrasonic Water Flow Meter
