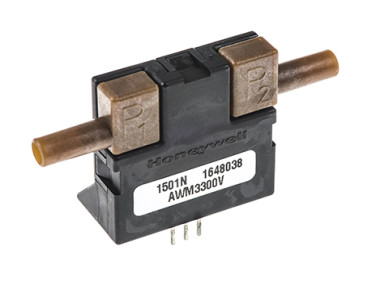

Honeywell Amplified Airflow Sensor, -1000 sccm → 1000 cm³/min, AWM3000 Series

NG # 03090-HW-HONEYWELL-338
MF # AWM3300V

Manufactured By :

Honeywell

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Amplified Airflow Sensor AWM3000 Series

Like the AWM2000 Series, the dual Wheatstone bridges in the AWM3000 series control airflow measurement. The AWM3000 Series is amplified; therefore, it can be used to increase the gain and to introduce voltage offsets to the sensor output. The heater control circuit and the sensing bridge supply circuit are on board the package.

Features and Benefits

• Laser Trimmed for improved sensor interchangeability

• Flow sensing up to 1.0 SLPM

• Low differential pressure sensing

Product Application Information

• Damper control for heating, ventilation, and air conditioning systems

• Gas analyzers

• Low vacuum control

• Process control

• Medical respirators and ventilators

• Oxygen concentrators

• Leak detection equipment

• Vent hoods

• Anaesthesia control

• Gas metering

• Gas chromatography

Specification

Media Monitored	Dry Gas
Device Type	Amplified
Minimum Flow Rate	-1000 sccm
Maximum Flow Rate	1000 cm³/min
Supply Voltage	15 V dc
Pipe Diameter Range	0.2 in
Maximum Pressure	25psi
Material	Plastic
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Series	AWM3000
