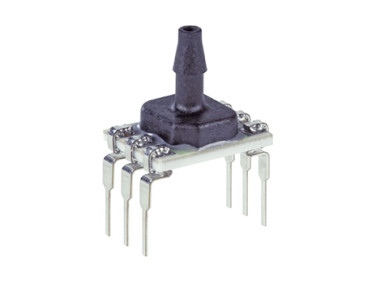

Honeywell Gauge Pressure Sensor, 1000kPa Operating Max, PCB Mount, 6-Pin, 1700kPa Overload Max, DIP

  • NG # 03078-HW-HONEYWELL-326

  • MF # ABPDANN010BG2A3

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Honeywell ABP Series are piezoresistive silicon pressure sensors offering a ratio metric analog or digital output for reading pressure over the specified full-scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and accuracy errors (which include nonlinearity, repeatability, and hysteresis) using an onboard Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards


Measures gage and differential pressures
Total Error Band (see Figure 1): ±1.5 %FSS
Liquid media option: Allows for wet/wet operation on dual-ported devices
Industry-leading long-term stability: ±0.25 %FSS
Industry-leading accuracy: ±0.25 %FSS BFSL
As small as 8 mm x 7 mm

Specification

Maximum Overload Pressure1700kPa
Mounting TypePCB Mount
Package TypeDIP
Pin Count6
Maximum Operating Pressure1000kPa
