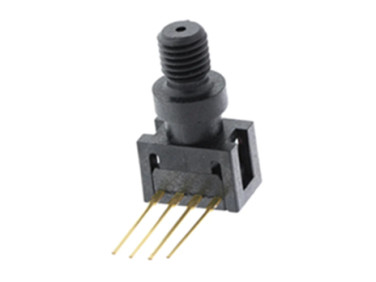

Honeywell Gauge Pressure Sensor, 100psi Max Pressure Reading, 10 V dc

  • NG # 03067-HW-HONEYWELL-315

  • MF # 24PCFFM6G

The 24PCFFM6G is a miniature basic Pressure Gauge Sensor have wet/wet capability and incorporating a seal either side of the diaphragm. One if which is unique conductive seal offering improved reliability for product range. Can be used to measure with vacuum or positive pressure.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

These miniature Surface Mount Technology (SMT) Low-Pressure Sensors are small, cost-effective devices intended for use with wet/wet differential sensing. Based on the long-established reliability and accuracy of the single in-line package, the SMT version’s smaller configuration reduces the footprint area on the printed circuit board thereby reducing overall PCB size and cost. The sensor is capable of being board-mounted with other common SMT devices, helping to eliminate secondary board mounting operations and improving manufacturing productivity.

The 24PC/26PC sensors feature proven sensing technology that uses a specialized piezo-resistive micro-machined sensing element to offer high performance, reliability, and accuracy. Both sensor series are unamplified but the 26PC series are temperature-compensated. The sensors can be used with a wide variety of wet and dry media that are compatible with polyphthalamide (PPA) plastics and media seals and they are designed to measure pressures from ±1 to ±15 psi over an operating temperature range of -40 to 85 ºC.


• Compact SMT mounting package
• Wet/Wet capability (i.e. liquids on both ports)
• 24PC Series: Uncompensated/Unamplified
• 26PC Series: Compensated/Unamplified
• RoHS compliant
• Designed and manufactured according to ISO 9001 standards



Specification

Pressure Reading TypeGauge
Minimum Pressure Reading0psi
Maximum Pressure Reading100psi
Accuracy0.2 %
Output TypeUnamplified
Media MeasuredNitrogen Gas, Oxygen, Water
Electrical ConnectionSolder Tag
Analogue Output156 → 294 mV
Response Time1 ms
Supply Voltage10 V dc
Minimum Operating Temperature-40°C
Maximum Operating Temperature+85°C
