NG # 00907-HW-HNWEL-027

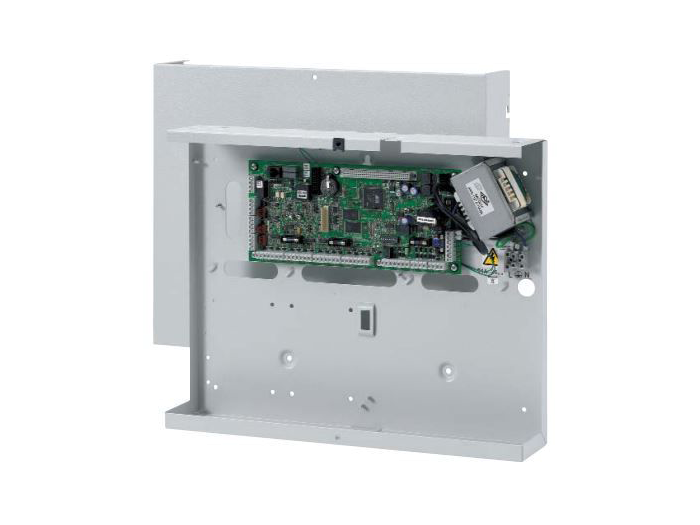

The Honeywell Galaxy Dimension GD-096 (GD-96) is an integrated intrusion detection and access control panel designed for medium-sized commercial, industrial, institutional, and high-security installations. It provides a scalable security platform supporting up to 96 zones, including up to 80 wireless zones, with comprehensive options for access control, user management, scheduling, event logging, and remote communications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe GD-96 supports up to 16 keypads, 7 KeyProx units, 16 bus-mounted proximity readers, and 16 door control modules (DCMs). With DCMs, the system can control up to 32 doors, making it suitable for facilities requiring both intrusion protection and controlled access.
| Specification | Honeywell Galaxy GD-096 / GD-96 |
|---|---|
| Brand | Honeywell |
| Product Family | Galaxy Dimension |
| Model | GD-96 / GD-096 |
| Product Type | Integrated Intrusion & Access Control Panel |
| Zones | 16–96 |
| Maximum Wireless Zones | 80 |
| Wireless RF Portals | Up to 8 |
| Onboard Outputs | 8 × 400 mA |
| Trigger Outputs | 6 × 10 mA |
| Integrated PSU | 2.5 A |
| EN50131 Output Rating | 1.2 A |
| RS-485 Databuses | 2 |
| Keypads | Up to 16 |
| KeyProx Units | Up to 7 |
| Bus-Mounted Proximity Readers | Up to 16 |
| Door Control Modules (DCM) | Up to 16 |
| Controlled Doors | Up to 32 |
| Users | Up to 250 |
| Groups | Up to 16 |
| 7-Day Timer Schedules | Up to 35 |
| Event Log | Up to 1,500 events |
| Access Log | Up to 1,000 events |
| Audio Verification | Up to 16 channels |
| RS-232 | Built-in |
| PSTN | Built-in on documented variants |
| Ethernet | Optional module |
| GPRS/IP | Optional module |
| Security Compliance | EN50131-3, EN50131-6, PD6662 |
honeywell GD-096 Control Panel Data Sheet
