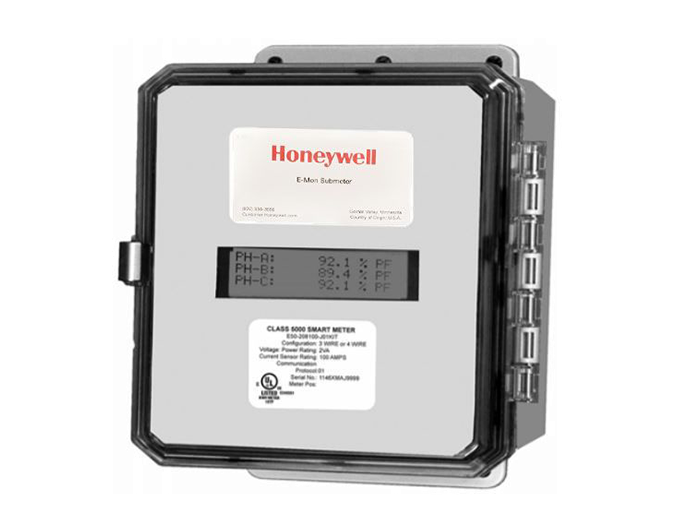

Honeywell E-Mon™ Class 5000 3-Phase RS485 IP Smart Meter

  • NG # 01170-HW-HNWEL-196

A versatile smart meter featuring dual-protocol capability, offering both RS485 and Ethernet communication options, along with two pulse outputs and two external meter inputs.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

In addition to advanced display features and on-board set up options, the Class 5000 meter offers users the option of dual-protocol communication capabilities via RS-485 and Ethernet (optional telephone modem available). Users can choose from a variety of industry-standard communication protocols including- EZ7 E-Mon Energy, Modbus RTU, Modbus TCP/IP, BACnet MS/TP, BACnet IP or LonWorks TP/FT-10. Meters are available in either NEMA 4X outdoor enclosures or indoor JIC steel enclosures.

Specification

  • Advanced 4-line display showing
  • On-board set-up option for​ IP Address​, Meter date/time, ID codes for EZ7, Modbus, and BACnet​
  • 0-2 volt output split-core current sensors allow for enhanced safety and accurate remote mounting of sensors up to 500 feet from the meter without power interruption (Optional solid-core current sensors available in 100 &- 200 amp)​
  • Onboard diagnostics and verification system
  • Two pulse outputs &- two external meter inputs (water, gas, BTU, etc.) (Channels 5 &- 6 available via E-Mon Energy only)​
  • Phase loss alarm (N.O. Contact)
  • Built-in RS-485 communications capability supports up to 52 Class 3200, 3400, 5000 meters, and/or IDR interval recorders(or combinations not to exceed 52 devices per channel)
  • Cabling can be either daisy-chain or star configuration, 3-conductor, 18-22 AWG, up to 4,000 feet cable total per channel
  • Built-in RS-485 &- Ethernet Communications, optional telephone modem available
  • Protocols​ - EZ7, Modbus RTU, Modbus TCP/IP, BACnet MS/TP, BACnet IP, LonWorks FT-10 (Twisted Pair)
  • Records kWh and kVARh delivered, kWh and kVARh received in first 4 channels. Data is stored in 15-minute intervals for up to 72 days or 5-minute intervals for up to 24 days. Maintains interval data storage in a first-in, first-out format
  • Compatible with E-Mon Energy Software via EZ7 protocol for automatic meter reading, billing, and profiling of interval energy data.
  • The meter is designed for use on both 3-phase, 3-wire (delta) and 3-phase, 4-wire (wye) circuits
  • Outdoor NEMA 4X polycarbonate enclosure (standard) ​or optional industrial-grade JIC steel enclosure​
  • Compatible with both 50 Hz and 60 Hz applications
