NG # 03127-HW-HONEYWELL-375
MF # MMT-LT01

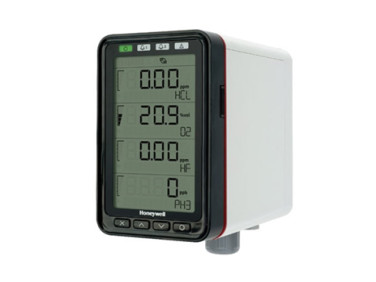

The Honeywell Midas®-M is a fixed extractive, single-point, 4-in-1 multi-gas detector designed for continuous monitoring of toxic, flammable, and oxygen gases. It draws a gas sample either from the local environment or from a remote sampling point and delivers it to a smart sensor cartridge installed inside the detector. Honeywell offers sensor cartridges for more than 30 gases, making the Midas-M suitable for semiconductor manufacturing and other industrial manufacturing applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Midas-M uses a plug-and-play smart sensor cartridge with an onboard e-calibration certificate, helping simplify installation, replacement, and commissioning. Its modular construction allows the front, pump, sensor cartridge, main electronics, and base to be serviced separately. A built-in pump can sample from locations up to 100 ft (30 m) away, while optional Line Integrity Testing can help identify leaks in the sampling tubing.
For system integration, the detector provides 0–21 mA analog output, Modbus/TCP Ethernet, three Form C relays, and Power over Ethernet (PoE). A backlit LCD, keypad, event logging, remote web-browser interface, and Reflex® sensor health monitoring provide convenient operation and maintenance.
| Specification | Details |
|---|---|
| Product Type | Fixed Extractive Single-Point Multi-Gas Detector |
| Detection | Toxic, flammable and oxygen gases |
| Sensor Configuration | 4-in-1 smart sensor cartridge |
| Gas Coverage | 30+ gases, depending on sensor cartridge |
| Sampling Method | Extractive sampling |
| Flow Rate | Approx. 500–600 mL/min |
| Maximum Sample Distance | Up to 30 m / 100 ft |
| Transport Time | Approximately 2–30 seconds maximum |
| Sample Tubing | 0.125 in ID × 0.25 in OD |
| Power Supply | 24 VDC nominal; 20.4–26.4 VDC |
| Power Consumption | ≤12.9 W |
| Analog Output | Isolated 0–21 mA |
| Communication | Modbus/TCP Ethernet |
| PoE | Supported |
| Relay Outputs | 3 Form C relays – Alarm 1, Alarm 2 and Fault |
| Relay Rating | 1 A @ 30 VDC or 0.5 A @ 125 VAC maximum |
| Display | Multicolor backlit LCD |
| User Interface | 4-button keypad |
| Remote Access | Web-browser interface via Ethernet |
| Mounting | DIN rail or wall mounting |
| Enclosure Rating | NEMA 4 |
| Dimensions | Approx. 5.35 × 3.27 × 5.98 in (H × W × D) |
| Sensor Features | Factory calibration, e-calibration certificate, Reflex® sensor health check |
| Optional Features | Line Integrity Test (LIT), external relay module |
| Typical Applications | Semiconductor fabrication, gas cabinets, wafer dryers, wafer reactors, industrial manufacturing |
