NG # 00908-HW-HNWEL-028

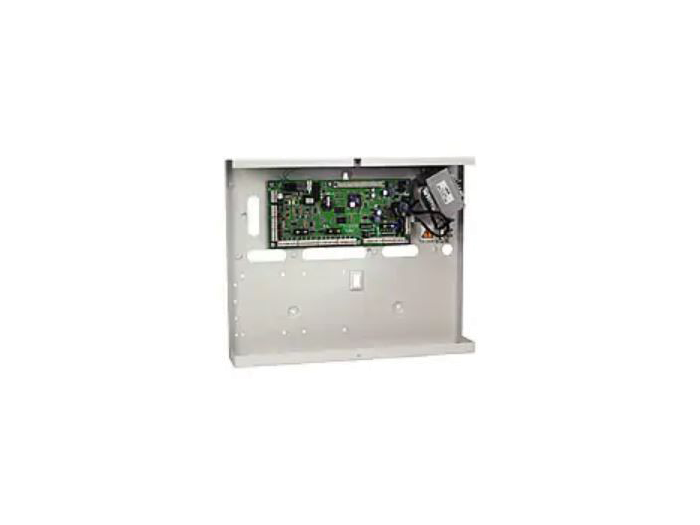

The Honeywell Galaxy Dimension GD-520 is a high-capacity integrated intrusion detection and access control panel designed for large commercial, industrial, institutional, and high-security installations. It is the largest model in the Galaxy Dimension range, supporting up to 520 zones, including up to 192 wireless zones, while providing extensive expansion for keypads, proximity readers, door controllers, and security groups.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe GD-520 supports up to 32 controlled doors, 64 access doors with the appropriate access-control configuration, 1,000 users, 32 groups, and 67 seven-day timer schedules. It also provides four RS-485 databuses, eight onboard 400 mA outputs, a 2.5 A integrated power supply, and communication options such as Ethernet, GSM/GPRS and 4G/LTE depending on the installed modules and system version.
| Specification | Honeywell Galaxy GD-520 |
|---|---|
| Brand | Honeywell |
| Product Family | Galaxy Dimension |
| Model | GD-520 |
| Product Type | Integrated Intrusion & Access Control Panel |
| Zones | 16 to 520 |
| Maximum Wireless Zones | 192 |
| Wireless RF Portals | Up to 8 |
| Onboard Outputs | 8 × 400 mA |
| Trigger Outputs | 6 × 10 mA |
| Integrated Power Supply | 2.5 A |
| EN50131 Output Rating | 1.2 A |
| RS-485 Databuses | 4 |
| Keypads / KeyProx | Up to 32 / 24 |
| Bus-Mounted Proximity Readers | Up to 32 |
| Door Control Modules | Up to 32 |
| Controlled Doors | Up to 64 |
| Users | Up to 1,000 |
| Groups | Up to 32 |
| 7-Day Timer Schedules | Up to 67 |
| Event Log | Up to 1,500 events |
| Access Log | Up to 1,000 events |
| Audio Verification | Up to 32 channels |
| RS-232 | Built-in |
| PSTN | Built-in on documented variants |
| Ethernet | Optional |
| GSM/GPRS | Optional |
| 4G/LTE | Optional on applicable versions |
| Security Compliance | EN50131-3, EN50131-6, PD6662/BS8243 |
Honeywell E-Mon™ Class 1000 Single Phase Pulse Meter
Honeywell MLH Series Gauge Pressure Sensors (Discontinued)
Honeywell Gauge Pressure Sensor, 207kPa Operating Max, PCB Mount, 6-Pin, 1724kPa Overload Max, DIP
Honeywell UEC24014M262 Differential Pressure Switch
Honeywell PWTB Series Wet Pressure Sensors
Honeywell Fendall Eyesaline® Wall Station, Double 32 oz | Mfg# 32-000462-0000
Honeywell Modutrol Actuator With 3-Point Control

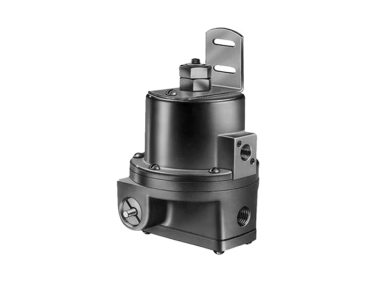

Honeywell RP972A Pneumatic Reversing Relay
