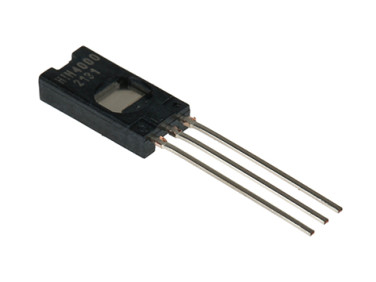

Honeywell HIH-4000 Series Humidity Sensor, Analogue Output, Through Hole Mount, Analogue, ±3.5%RH, 3 Pins

NG # 03098-HW-HONEYWELL-346
MF # HIH-4000-002

Manufactured By :

Honeywell

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HIH-4000 series has been specifically designed for use in high volume OEM (Original Equipment Manufacturer) applications. These sensors utilize a near-linear voltage output making direct input to a controller or other devices possible. They are ideally suited for low-drain, battery-operated systems with a typical current draw of only 200 μA. Potential Applications: Refrigeration equipment HVAC equipmentMedical equipmentDryingMeteorologyBattery-powered systems OEM assemblies

Features: Moulded thermoset plastic housing near linear voltage output vs %RHLaser-trimmed interchangeabilityEnhanced accuracy, fast response fast response timetable, low drift performance chemically resistant

Honeywell Humidity Sensor, 4.17mm, 3-Pin SIP - HIH-4000-002

This humidity sensor from Honeywell is specifically designed for high-volume original equipment manufacturer (OEM) users. The sensor is frequently installed in equipment that requires strict monitoring of humidity levels, such as sensitive medical equipment or meteorological instruments. It has a molded thermoset plastic housing, so it's able to withstand light impacts. The sensing element's multilayer construction also provides excellent resistance to moisture as well as oils, dirt, dust, and chemicals, making it a good choice for use in harsh environments.

Features & Benefits

• Single in-line package (SIP) type for simple mounting onto printed circuit boards (PCBs)
• Analogue interface for easy pressure readings
• Low current draw of 200μA, making it suitable for low-drain, battery-operated systems
• Wide operating temperature range of -40°C to +85°C for use in a variety of conditions

Applications

• Heating, ventilation and air conditioning (HVAC) equipment
• Medical Industry
• Refrigeration equipment

Where on the PCB should I install a humidity sensor?

The humidity sensor should be placed in an area of the PCB that's as far away as possible from any heat-generating components. This reduces the risk of inaccurate readings caused by differences in temperature.

Specification

Sensor Function	Humidity Sensor
Output Type	Analogue
Interface Type	Analogue
Accuracy	±3.5%RH
Mounting Type	Through Hole
Pin Count	3
Minimum Operating Temperature	-40 °C
Operating Temperature Range	-40 → +85 °C
Maximum Operating Temperature	+85 °C
Minimum Operating Supply Voltage	4 V
Maximum Operating Supply Voltage	5.8 V
Package Type	SIP
Length	4.17mm
Height	8.59mm
Series	HIH-4000
Width	2.03mm
Dimensions	4.17 x 2.03 x 8.59mm
