Honeywell RAEGuard 2 PID

  • NG # 03131-HW-HONEYWELL-379

  • MF # H-D03-0008-000

Fixed photoionization detector that measures a broad range of volatile organic compounds.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

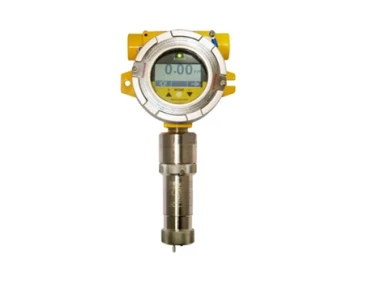

The Honeywell RAEGuard 2 PID is a fixed photoionization detector (PID) that measures a broad range of volatile organic compounds (VOCs). The RAEGuard 2 PID operates on 10 to 28 VDC and provides an analog 4-20mA, three-wire signal output, and RS-485 Modbus digital signal output.

The RAEGuard 2 PID uses an intelligent processing platform and digital sensor technology that supports multiple ranges and resolutions and is capable of environmental self-adaptation. Calibration and maintenance have been greatly simplified as the digital PID module can be easily removed in hazardous locations for calibration or maintenance.

The RAEGuard 2 PID has a graphic display local sound alarm and LED light status indicator. In addition, Low, High, and Fault relays can be configured to trigger external alarms or process controls. A magnetic key interface enables the detector to be calibrated and operational parameters adjusted with the explosion-proof enclosure in place.

Some key applications for the RAEGuard 2 PID along with the PIDs involved include:

  • Benzene in refinery analyzer shelters
  • Ammonia in industry
  • Vinyl Chloride in chemical manufacturing
  • Toluene or Ammonia in semi-conductor plants
  • Chlorine Dioxide, Hydrogen Peroxide, and Ozone in pulp and paper
  • Solvent and chemical storage
  • Phenol and DME in pharmaceutical
  • Toluene in printing
  • Air quality
  • Methyl Ethyl Ketone in paint spray booths
  • Heat transfer fluids
  • Acetone, Xylene, Pand phenol in medical, pathology, histology lab

Specification

  • Digital Smart Sensor Technology
  • Detection range options:
    • 0.01 to 100ppm, 0.1 to 1000ppm, or 1 to 1000ppm
  • Operates in flow-through mode
  • Three wires, support 4-20mA analog output
  • RS-485 digital communication in ModBus protocol
  • Explosion-proof stainless-steel enclosure
    • For hazardous environment applications
    • Adjust parameters without opening the housing
  • Matrix LCD of 128 x 64 supports graphic display
  • LED alarms when a High or Low alarm point is reached
  • Operation at 10 to 28 VDC
  • Three dry contacts
    • (<30Vdc, 2A) normally open (or normally closed)
    • High and Low alarm
    • Fault alarm
