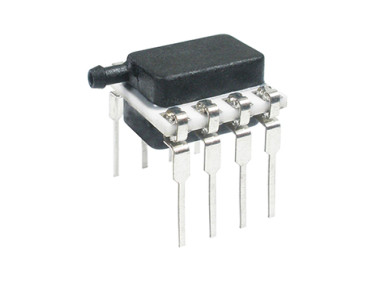

Honeywell Absolute Pressure Sensor, 160kPa Operating Max, PCB Mount, 8-Pin, 400kPa Overload Max, DIP

  • NG # 03079-HW-HONEYWELL-327

  • MF # HSCDRNN1.6BASA3

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Honeywell TruStability High Accuracy Silicon Ceramic (HSC) Series is a piezoresistive silicon pressure sensor offering a ratio metric analog or digital output for reading pressure over the specified full-scale pressure span and temperature range. The HSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an onboard Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital.


Stability and reliability
Industry-leading accuracy of ±0.25 %FSS BFSL
Port and housing options simplify integration
Wide pressure range, from ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2 O to ±150 psi
Small package size
Extremely low power consumption

Specification

Maximum Overload Pressure400kPa
Mounting TypePCB Mount
Package TypeDIP
Pin Count8
Maximum Operating Pressure160kPa
