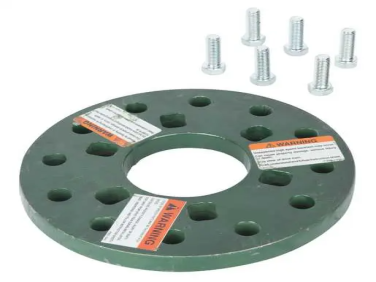

Hubbell Tooling Bolt Circle Adapter

  • NG # 03012-HW-HUBBELL-002

  • MF # T3030166N

Manufactured By :
Hubbell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Bolt circle adapter with one 5 1/4" (133.5 mm) bolt circle with 1/2" (12.7 mm) bolt holes and one 7 5/8" (193.7 mm) bolt circle with 5/8" (15.9 mm) bolt holes.

Anchor tool adapter. Used to match up bolt circles 5.25in to 7.625in


Used to match up bolt circles

Specification

General

Application

Anchor/Pile Installation

Catalog Number

T3030166N

Torque Rating

10000 ft-lbs

Type

Anchor/Pile Installation Tools

UPC

096359652427

Dimensions

Diameter - Bolt Circle

  • 5.25 in
  • 7.625 in

Weight

10 lb

Logistics

Standard Package

1
