RFQ

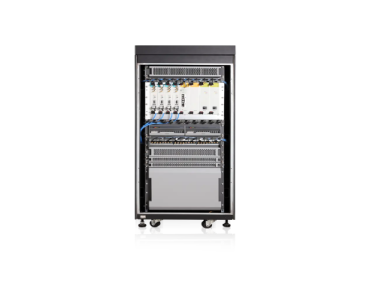

Hytera DS-6210 DMR Trunking Pro Base Station

  • NG # 03719-HW-HYT-040

Hytera DS-6210 DMR Trunking Pro Base Station is a digital trunking base station based on ETSI open standard DMR Tier 3.

Manufactured By :
Hytera
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The focus is on public safety, public utilities, energy, PMR operator, etc. With innovative design, Hytera DMR Trunking Pro Base Station is provided with features such as carrier grade reliability, wide coverage, large capacity and rich functionalities.

Specification



System Performance
Max. BS Capacity512
Max. Carrier Capacity per BS(carrier)16(extendable to 48 carriers at most)
Network Capacity (carrier)2048
Subscriber Capacity per MSO100000
LDS Capacity (pcs)50000
NMC Capacity (pcs)64
MPT Interconnect (way per gateway)16
PSTN/PABX Interconnect (way per gateway)60(2xE1)/30(1xE1)
Group Call Set-up Duration (ms)<300(within a single MSO)
Max. Number of Interconnected MSOs≤512
MS Capacity per System100000
BS Specificaition
Standard CompliancePDT/DMR
Frequency RangeUHF3：330-400MHz; UHF1：400-470MHz; UHF2：806-941MHz; VHF：136-174MHz
Carrier Capacity1CH to 16CH(expandable to 48 at most)
Power SupplyDC 48V; AC 220V
Dimensions(H×W×D) mm42U:600 mm × 700 mm × 2000 mm; 29U:600 mm × 600 mm × 1430 mm
Weight8-carrier (42U) ≤314 kg(fully configured); 4-carrier (29U) ≤165 kg(fully configured)
Operating Temperature-15℃～+35℃
Storage Temperature-40℃～+85℃
IP RatingIP20
Receiver
RX Sensitivity(Static)-118 dBm@BER5%
Transmitter
Adjust Power Range1 W～50 W
