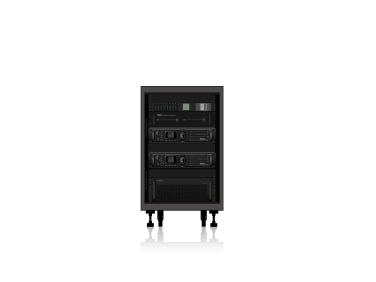

Hytera XPT Extended Pseudo Trunk System

  • NG # 03723-HW-HYT-044

Manufactured By :
Hytera
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

XPT (Extended Pseudo Trunk) is a new distributed trunking system solution developed by Hytera, which is based on Pseudo Trunk technology and combined with advantages of digital trunking system.

Specification



System Performance
MS Capacity per System1200 private call / 245 group call
BS Specificaition
Frequency RangeUHF1：400MHz～470MHz; VHF1：136MHz～174MHz; UHF3：350MHz～400MHz; VHF3：210 MHz～270 MHz; UHF5：806 MHz～941 MHz; UHF2：450MHz～527MHz
Power Consumption≤180 W/carrier
Dimensions(H×W×D) mm4-carrier: 600 mm × 600 mm × 1750 mm（37U）; 8-carrier: 600 mm × 600 mm × 1750 mm（37U）; 2-carrier: 600 mm × 600 mm × 675 mm（13U）
Weight8-carrier: ≤ 400 kg; 4-carrier: ≤ 200 kg; 2-carrier: ≤ 110 kg
Operating Temperature-30°C～+60°C
Storage Temperature-40°C～+85°C
Relative HumidityBase Station: 5% to 95%RH; MSO: 10% to 90%RH
Working Altitude≤2000 m
Mean Time to Repair(MTTR)30 minutes
Mean Time Between Failures(MTBF)100,000 hours
Receiver
RX Sensitivity(Static)-118 dBm@BER≤5%
Max. Valid RX Level-10 dBm（BER≤0.01%）
Transmitter
TX PowerRepeater：≤50 W; Antenna connector：≤14 W
Adjust Power Range5 W~50 W
