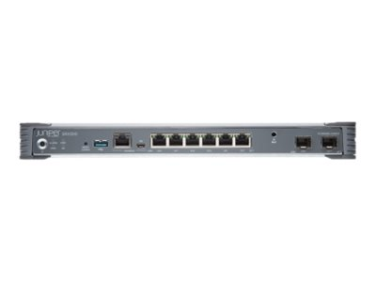

Juniper Networks SRX300 Services Gateway - security appliance

  • NG # 04441-SW-JI-002

  • MF # SRX300-SYS-JB

The Juniper Networks SRX300-SYS-JB Services Gateway is a compact, next-generation security appliance designed for small branch and distributed enterprise networks. It combines firewall, routing, switching, and VPN capabilities in a single device powered by Junos OS, delivering secure and reliable connectivity for modern business environments.

Manufactured By :
Juniper Networks
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SRX300-SYS-JB is a bundled hardware and software security gateway from Juniper’s SRX300 series. It is built to provide integrated network security and connectivity for small offices, retail branches, and remote sites.

It includes both the physical appliance and Junos OS Base software, enabling core security and networking functions such as firewall protection, NAT, IPsec VPN, routing, MPLS support, and basic switching features.

Designed in a compact desktop form factor, the device is suitable for space-constrained deployments while still offering enterprise-grade performance. It is commonly used as an edge security gateway to protect branch networks and manage secure connectivity to headquarters or cloud environments.

Key advantages include simplified deployment, centralized management via Junos OS tools, and strong security capabilities for small to mid-sized environments.

Specification

Hardware Specifications

  • Form factor: Desktop / rack-mountable (with kit)
  • Fixed ports: 8 × 1GbE (6 × RJ-45, 2 × SFP)
  • Console ports: RJ-45 and mini-USB
  • USB port: 1 × USB
  • Memory: 4 GB RAM
  • Storage: 8 GB flash
  • Power supply: External AC adapter (100–240V)
  • Cooling: Fanless (convection cooling)
  • Typical power consumption: ~25 W

Performance Specifications

  • Firewall throughput: up to ~1 Gbps (varies by traffic profile)
  • IPsec VPN throughput: up to ~250 Mbps
  • Maximum concurrent sessions: 64,000
  • New sessions per second: ~5,000
  • Maximum security policies: 1,000

Software & Features

  • Operating system: Junos OS
  • Security functions: Stateful firewall, NAT, IPSec VPN
  • Routing: Static routing, OSPF, BGP support (feature dependent)
  • Switching: Basic Layer 2 switching capabilities
  • Advanced services: MPLS support, QoS
  • Management: CLI, J-Web, Junos Space

Physical & Environmental

  • Operating temperature: 0°C to 40°C (typical range varies by datasheet)
  • Storage temperature: -20°C to 70°C
  • Humidity: 10% to 90% (non-condensing)
  • Weight: ~2 kg (approx.)
