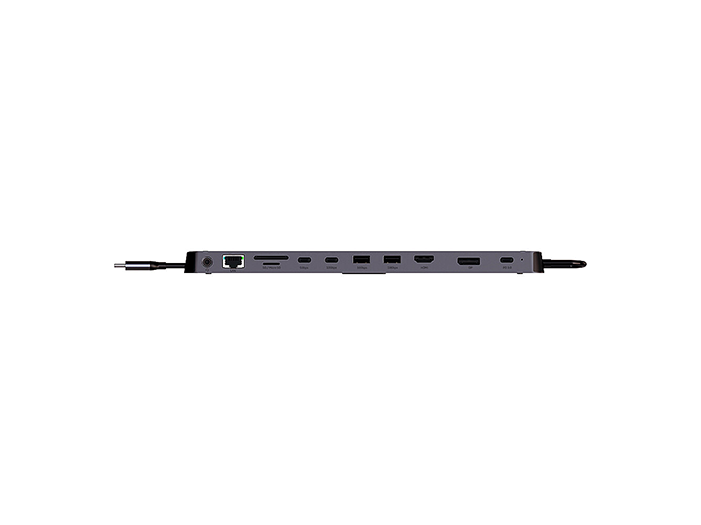

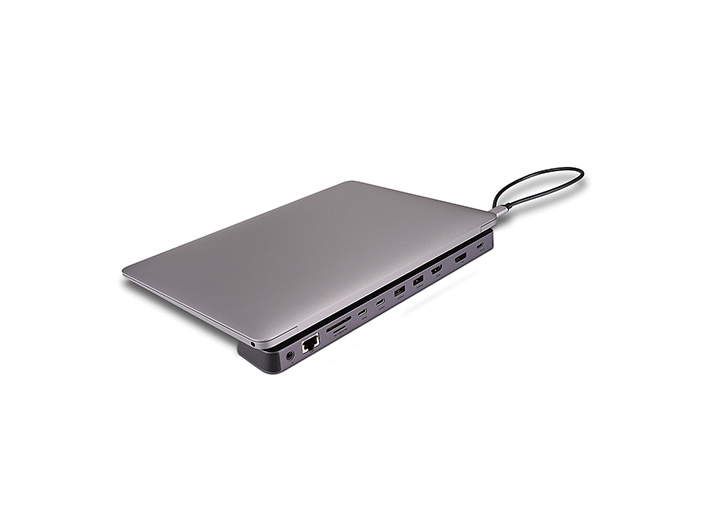

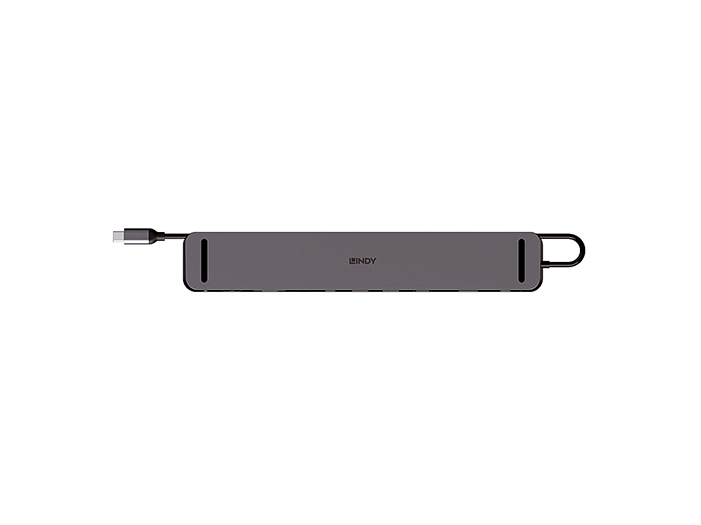

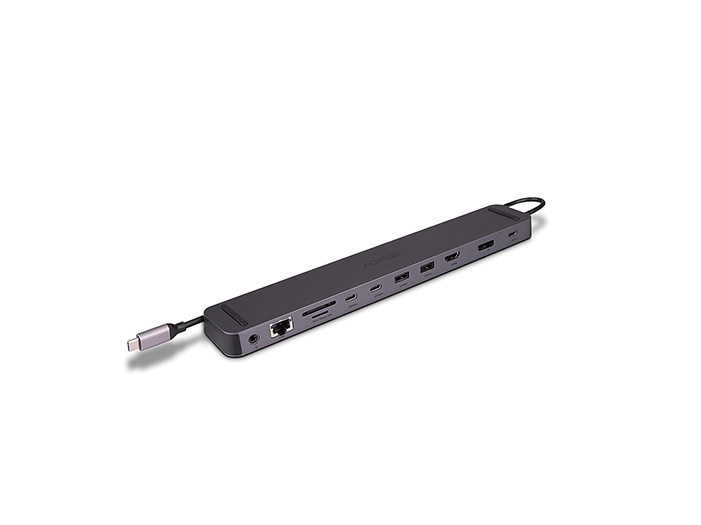

Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station with Single Display (8K) or Dual Display (4K60) & 100W Pass-Through Charging

  • NG # 02332-HW-LIndy-009

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.

Manufactured By :
Lindy
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD & Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.

The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop.  A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.

Specification

  • Interface: USB Type C to 1x HDMI / 1x DP/ 2x USB Type A / 2x USB Type C / 1x RJ45 / 1x SD / 1x microSD / 1x 3.5mm Audio
  • Interface Standard: USB 3.2 / 3.1 Gen 2 & Gen 1, Gigabit LAN, HDMI 2.1, DP 1.4a, Audio (combo)
  • Supported Bandwidth: 10 Gbps, 10/100/1000 Mbps
  • Maximum Input Resolution: 8K 7680x4320 30Hz
  • Maximum Output Resolution:
    • Single Display: 7680x4320 30Hz, 3840x2160 120Hz
    • Dual Displays: 3840x2160 60Hz (each)
  • Chipset: VMM6210, VL822, GL3510, GL3224, RTL8153B, ALC4032, VL102
  • Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support; Windows, macOS, Linux, Android, ChromeOS.
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • HDCP Support: HDCP 1.4 & 2.2
  • Supported Audio: Sampling rate 192kHz/24bit
  • Separate Audio Ports: 1x Audio combo port 3.5mm
  • Special Features: DisplayPort Alternate Mode, MST Extended display support for Windows, Battery Charging 1.2 (only USB 3.2 Gen 2 Type C port), supports simultaneous card reading, PXE (Preboot Execution Environment) and Wake on LAN (WOL), Supports MAC Address Pass-through (this feature is dependent upon the compatibility of the hardware used in each set up)

Connectors

  • Inputs: 1x USB Type C (Male)
  • Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 2x USB Type C (Female) / 1x SD slot, 1x microSD slot, 1x 3.5mm Audio (Female)
  • Power: 1 x USB Type C (Female) PD port

Physical Properties

  • Dimensions WxDxH: 270x45x16mm (10.63x1.77x0.63in)
  • (Fixed) cable length: 360mm (14.17in)
  • Housing Material: Aluminium
  • Net Weight: 0.23kg (0.51lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 0% - 85% RH (non-condensing)
  • Power Requirements: 15W
  • Colour: Anthracite

Miscellaneous

  • Packaging Type: Carton box
  • Packaging Dimensions: 365x93x35mm (14.37x3.66x1.38in)
  • Gross Weight: 0.37kg (0.82lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, REACH & RoHS, CP65

Package Contents

  • USB-C Laptop Mini Docking Station
  • Lindy manual

Purchasing Information

  • No.: 43392
  • EAN: 4002888433921
