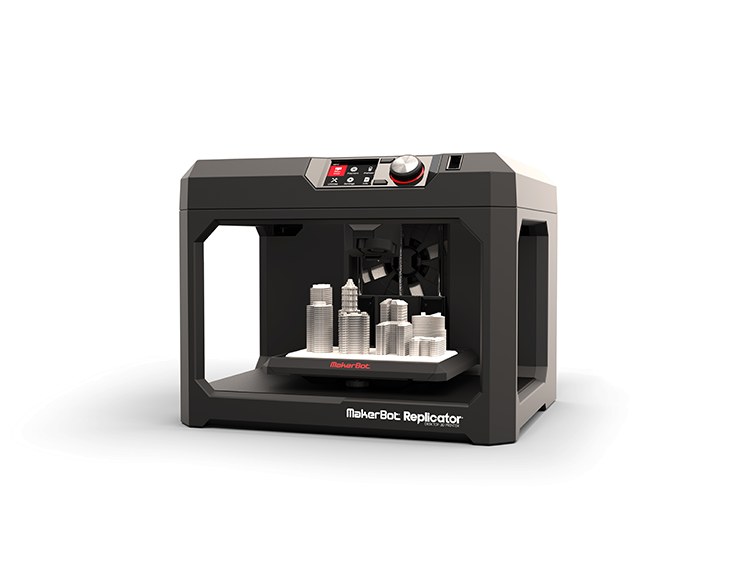

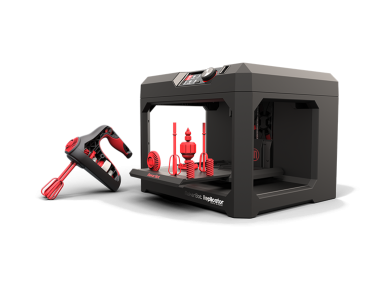

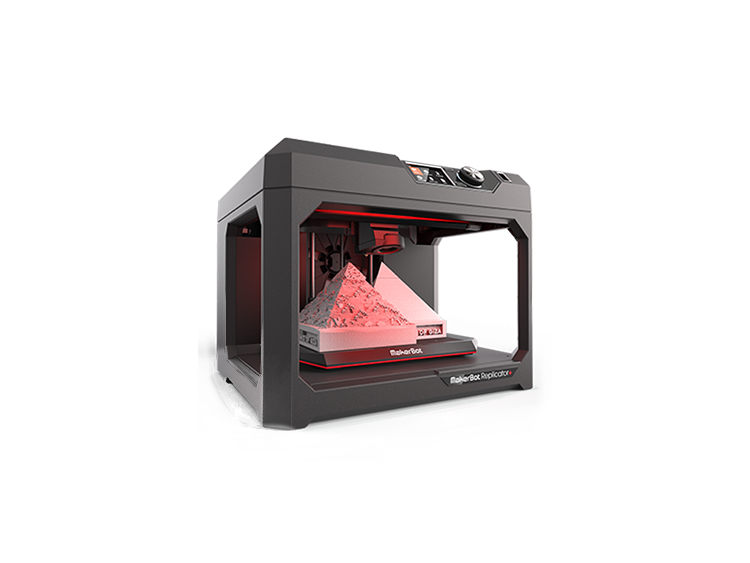

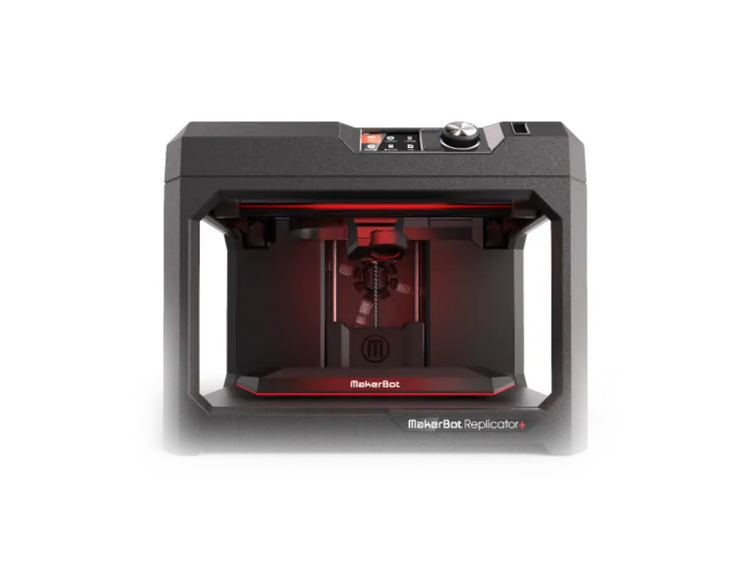

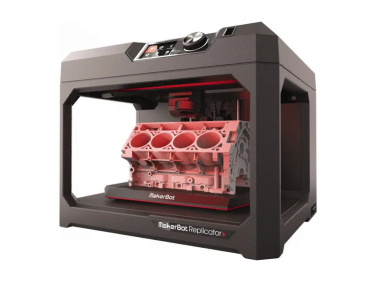

To ensure easy, accessible 3D printing, the MakerBot Replicator+ comes with the Smart Extruder+ and all the standard features of its predecessor. A few of those features include an LCD display, an on-board camera, as well as USB, Ethernet, and Wi-Fi connection.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe MakerBot Replicator+ prints 30% faster than its predecessor and offers a 25% larger build volume. For greater reliability and precision, it features improved hardware, like a redesigned gantry and z-stage. Save time and accelerate iteration by pairing the Replicator+ with MakerBot Print software and MakerBot Mobile. The Replicator+ is Cloud-enabled so you can control it remotely with MakerBot Print or the MakerBot Mobile app. With MakerBot Print, you can import Native CAD parts and assemblies, auto-arrange them during print preparation, and then print them on one or more printers. To get started printing quickly and easily, MakerBot Mobile offers an all-new guided wireless setup.
Specification
Printing
| Print Technology | Fused Deposition Modeling |
| Build Volume | 29.5 L X 19.5 W X 16.5 H CM [11.6 X 7.6 X 6.5 IN], 9,492 Cubic Centimeters [573 Cubic Inches] |
| Layer Resolution | 100 microns [0.0039 IN] |
| Material Diameter | 1.75 mm [0.069 in] |
| Material Compatibility | MakerBot PLA Material - Large Spool, Small Spool, MakerBot Tough Material - Large Spool Additional materials such as bronzefill, copperfill, and woodfill |
| Extruder Compatibility | Smart Extruder+, Tough Smart Extruder+, Experimental Extruder |
| Nozzle Diameter | 0.4 MM [0.015 IN] |
| Print File Type | .MAKERBOT |
SIZE
| Product Dimensions | 52.8 L X 44.1 W X 41.0 H CM[20.8 X 17.4 X 16.2 IN] |
| Shipping Box | 61.6 L X 52.4 W X 57.9 H CM |
| Product Weight | 18.3 KG |
| Shipping Weight | 22.8 KG |
MECHANICAL
| Construction | PC ABS with Powder-Coated Steel Reinforcement, Aluminum Casting and Extrusions for Motion Components |
| Build Surface | Grip Surface |
| Build Plate Leveling | Factory Leveled |
| Stepper Motors | 1.8° step angle with 1/16 micro-stepping |
| XY Positioning Precision | 11 Microns [0.0004 IN] |
| Z Positioning Precision | 2.5 Microns [0.0001 IN] |
SOFTWARE
| Software Bundle | MakerBot Print Software, MakerBot Mobile |
| Supported File Types | STL, OBJ |
| Operating Systems | Windows (7, 10) Mac OS X (10.9+) |
ELECTRICAL
| Power Requirements | 100-240 V, 50-60 HZ 0.76-0.43 A |
| Connectivity | USB, Ethernet, Wifi |
CAMERA
| Camera resolution | 640 x 480 |
TEMPERATURE
| Ambient Operating Temperature | 15-32°C [60-90°F] |
| Storage Temperature | 0-38°C [32-100°F] |
