Rockwell automation Rockwellautomation ASEM 6300B Box PC

  • NG # 02044-HW-ROCKWELL-001

  • MF # 02044-HW-ROCKWELL-001

  • SKU # 02044-HW-ROCKWELL-001

The ASEM 6300B and 6300P industrial computers now feature a preinstalled ThinManager-ready BIOS, streamlining the process of integrating a new computer into your ThinManager environment right out of the box.

Manufactured By :
rockwell automation
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The ThinManager console downloads all of the necessary application firmware and software without the need for Pre-Execution (PXE) or DHCP infrastructure. Just change the boot order on the new computer, define its IP address, and boot it into ThinManager. With over 100,000 configurations to choose from, the built-in ThinManager-ready BIOS is an industry exclusive. Plus, you’ll have guaranteed support from Rockwell Automation for your entire ThinManager system.

Our ASEM 6300B PC book mount units are compact and lightweight, yet powerful making them ideal for HMI, Industrial Internet of Things (IIoT) gateway and data logging applications. Additionally, these units are available in fanless construction, which is optimal for applications requiring low maintenance. Fan-cooled units will be offered for industrial operations in which additional cooling may be required. Configure to order options are available.

Specification

Operating systemMicrosoft Windows 10 IoT Enterprise LTSC 2019 64 bit
ProcessorIntel Atom x7-3950 1.6 GHz (2.0 GHz Burst), 4 cores/4 threads, 2 MB L2 cache)
Video controller  Intel HD Graphics 505 integrated in x7-3950, 500/650 MHz
System memory - RAM4 GB/8 GB, LP-DDR4 - 2400 (soldered)
Mass storageM.2 size 2242 key B SSD SATA III (up to 240 GB)
LAN2 x Ethernet 10/100/1000 Mbps (Intel I210, RJ45)
USBSingle DisplayPort - 2 x USB 3.0 (Type-A) / Dual DisplayPort - 4 x USB 3.0 (Type-A)
Video output1 x DisplayPort or 2 x DisplayPort (model dependent)
Audio outputStandard 3.5mm audio output jack (Only available on Dual Display model)
Power24V DC (18...32V DC) isolated
MountingDIN rail mount, wall mount (single Display Port model)
Case materialAluminum alloy
Operating temperature0...50 °C (32…122 °F)
Storage temperature-10...+60 °C (14…140 °F)
Approvals
  • CE (EN 61326-1, EN 61010-1, EN 61010-2-201)
  • cULus Listed (UL61010)
  • RCM
Humidity80% (non-condensing)

CATALOGS

ASEM 6300B Box PC datasheet

Other rockwell automation Products

Rockwell Automation 1769 Series Terminal Block for Use with 1769-OA8, 1769-OW8
rockwell automation Computer & Electronics 03923-HW-ROCKWELL-025

Rockwell automation 6186M Performance Monitors
rockwell automation Computer & Electronics 02049-HW-ROCKWELL-006

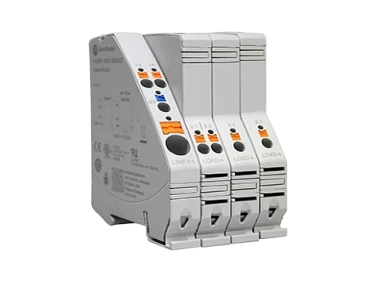

Rockwell Automation 1694 Electronic Circuit Protectors Electronic Circuit breaker 40A 24V 1694-PFA, 2 channels
