Scully DuoCept™, 5-Wire Optic & Thermistor Overfill Sockets

  • NG # 03164-HW-SCULLY-032

  • MF # SC09060

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

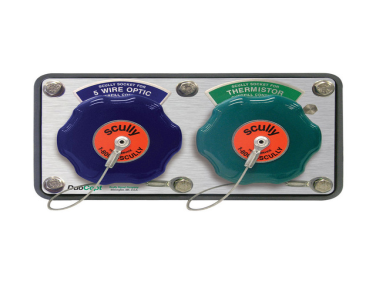

Scully's DuoCept includes two socket interfaces, one optic and one thermistor in one, lightweight, easy-to-install weather resistant housing. Duocept models can include a factory installed T.I.M. truck identification module. Please call 1 (800) 333-3331 for more information.

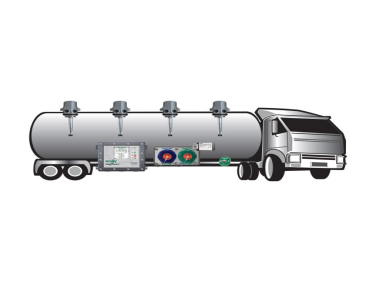

Scully Sockets are part of a complete vehicle mounted overfill prevention and grounding systems. With over 90% of all bottom-loading terminals in the United States using Scully Overfill Prevention Systems, Scully sockets offer the compatibility needed at any terminal. The style of plug at each loading terminal that your vehicles load should be considered to ensure a compatible connection. Truck-mounted, they connect to the Scully IntelliCheck® or Load Anywhere® onboard monitor and /or Scully sensors and the terminal loading rack overfill monitor via the terminal plug.

Specification

  • Model: DuoCept
  • Housing: Aluminum casting with gray powder coated finish
  • Socket Connector Outer Ring: Black anodized aluminum
  • Dust Cap: Molded vinyl
  • Wiring Harness: 10 ft. Oil/weather resistant cable
  • Contacts: Stainless steel

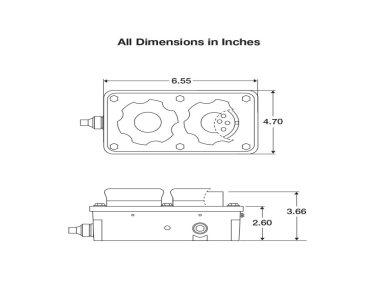

  • Dimensions: 6.55 in. L x 4.70 in. W x 3.66 in. H
