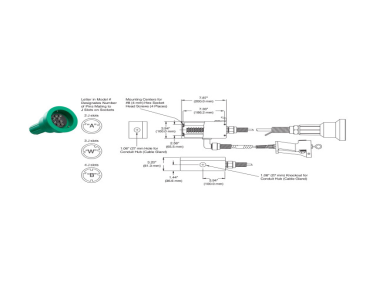

Scully SC-6W Sculcon Junction Box, Blue Optic Plug w/ 3 J-Slot Pins & 6 Contact Pins & 30 ft. Coiled Cord

  • NG # 03165-HW-SCULLY-033

  • MF # SC08159

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Scully Plugs and Cables are constructed from heavy duty molded polyurethane and have stainless steel contacts. They are used to connect the Scully loading rack control monitor to the vehicle mounted socket. These plugs and cables are the pathway for the control unit/sensor signals which monitor the status of overfill protection, electro-static grounding and vehicle identification during loading operations.


Scully plugs and cables are the product of years of industry experience and offer durable, efficient operation. The SC-6W is designed for use only with the intrinsically safe output circuits of Scully's ST-35, ST-35C and Intellitrol®.

Specification

  • Model: SC-6W
  • Part: 08159
  • Applicable Controllers: Intellitrol, ST-35, ST-35C
  • Plug Style: Blue - Optic (API RP1004 WOGA Optic Standard)
  • # of Pins/Slots in Mating Area: 6 pins, 3 J Slots
  • Cord Length: 30 ft. Coiled
  • Plug Body: Polyurethane
  • Insulator: Polycarbonate
  • Contact Pins: Stainless Steel
  • Junction Box: Aluminum
  • Environmental Temperatures: -40°F to +140°F (-40°C to +60°C)
  • Approvals: These devices are part of an intrinsically safe system certified by FM
