NG # 01534-HW-TESTO-007

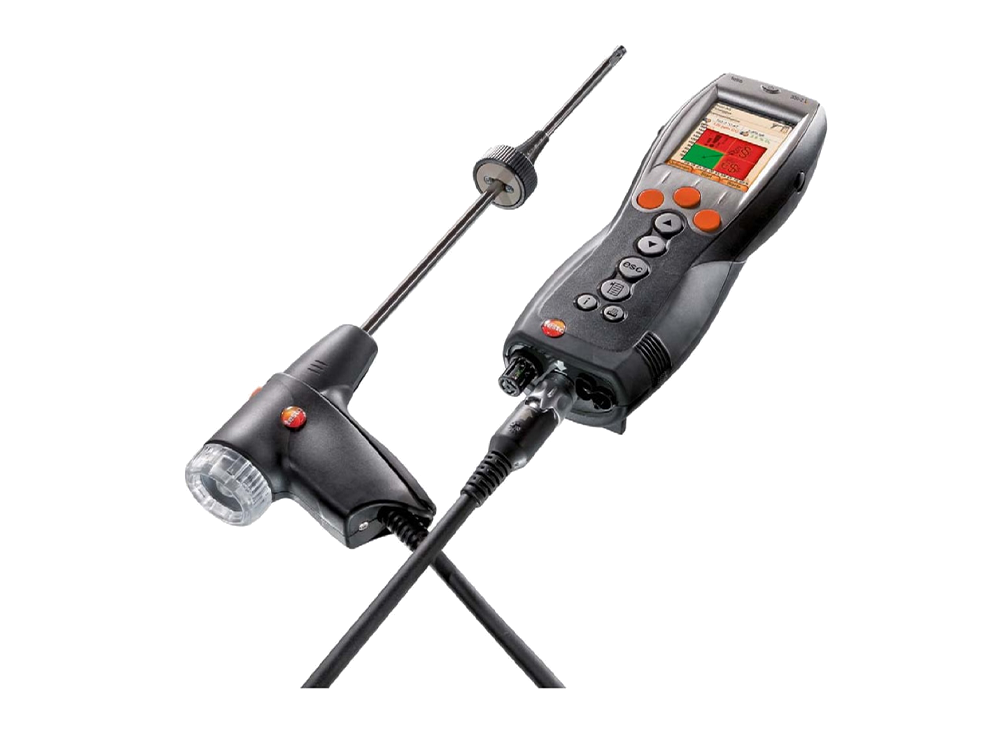

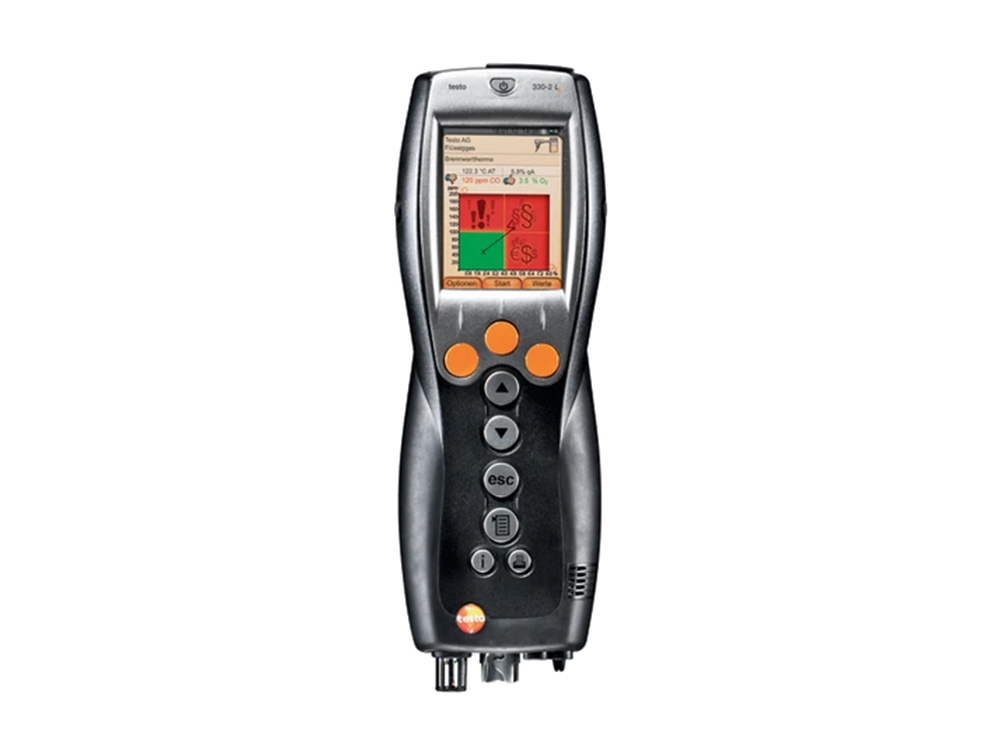

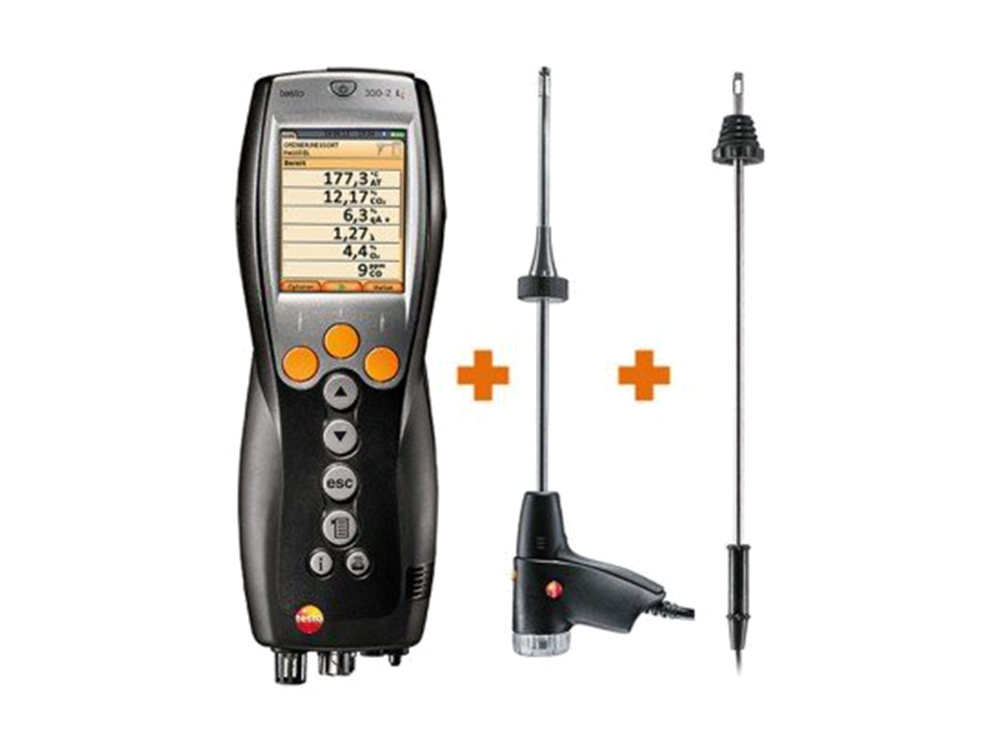

testo 330-2 LL flue gas analyzer with long-life gas sensors and built-in draugh and gas zeroing; BLUETOOTH and with H2-compensated CO-sensor.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFor commercial and industrial boiler combustion analysis, the Testo 330-2G LL Kit 2 combustion analyzer is properly outfitted NO sensor to calculate NOX, high range CO, sensor protection, large memory for maintaining service records, and on-site printing capability. The Testo 330-2G LL combustion analyzer has the longest sensor warranty on the market - 4 years!. Rugged construction and high quality sensors provide years of reliability and very low cost-of-ownership.
Specification
| Measuring Range | 0 to 300 inH2O |
| Accuracy | ±0.5 inH2O (0.0 to 50.0 inH2O) ±1% of rdg. (50.1 to 100.0 inH2O) ±1.5 % of rdg. (remaining range) |
| Resolution | 0.1 inH2O |
| CO Low | |
|---|---|
| Measuring Range | 0 to 500 ppm |
| Accuracy | ±2 ppm (0.0 to 40.0 ppm) ±5% of rdg. (remaining range) |
| Resolution | 0.1 ppm |
| NO Measurement | |
| Measuring Range | 0 to 3000 ppm |
| Accuracy | ±5 ppm (0 to 100 ppm) ±5% of rdg. (101 to 2000 ppm) ±10% of rdg. (2001 to 3000 ppm) |
| Resolution | 1 ppm |
| O2 Measurement | |
| Measuring Range | 0 to 21 Vol. % |
| Accuracy | ±0.2 Vol. % |
| Resolution | 0.1 Vol. % |
| Exhaust Gas Measurement | |
| Measuring Range | 0 to 99.9% |
| Resolution | 0.1% |
| Draft Measurements | |
| Measuring Range | -9.99 to +40 inH2O |
| Accuracy | ±0.02 inH2O or ±5% of rdg. (-0.50 to +0.60 inH2O) ±0.03 inH2O (+0.61 to +3.00 inH2O) ±1.5% of rdg. (+3.01 to +40.00 inH2O) |
| Resolution | 0.01 inH2O |
| CO Measurement (Electrochemical) | |
| Measuring Range | 0 to 8000 ppm |
| Accuracy | ±10 ppm or ±10% of rdg. (0 to 200 ppm) ±20 ppm or ±5% of rdg. (201 to 2000 ppm) ±10% of rdg. (2001 to 8000 ppm) |
| Resolution | 1 ppm |
| CO2 | |
| Measuring Range | 0 to 1 Vol. % 0 to 10.000 ppm |
| Accuracy | ±(50 ppm ±2% of rdg.) (0 to 5000 ppm) |
| Reaction time | Approx. 35 sec. |
| CO | |
| Measuring Range | 0 to 500 ppm |
| Accuracy | ±5 ppm (0 to 100 ppm) ±5% of rdg. (>100 ppm) |
| Resolution | 1 ppm |
| Reaction time | Approx. 35 sec. |
| Efficiency Measurement (ETA) | |
| Measuring Range | 0 to 120% |
| Resolution | 0.1% |
| Type K | |
| Measuring Range | -40 to 1200 °C |
| Accuracy (relative) | ±0,5 °C (0.0 to +100.0 °C) ±0,5 % of rdg. (remaining range) |
| Resolution | 0.1 °C (-40 to 999,9 °C) 1 °C (remaining range) |
| CO2 - Determination | |
| Measuring Range | 0 to CO2 max |
| Accuracy | ±0.2 Vol. % |
| Resolution | 0.1 Vol.% |
| Reaction time | < 40 sec. |
| General Specifications | |
| Memory | 500.000 values |
| Storage Temperature | -20 to 50 °C |
| Operating Temperature | -5 to +45 °C |
| Dimensions | 270 x 90 x 65 mm |
testo 330-2 LL Manual
