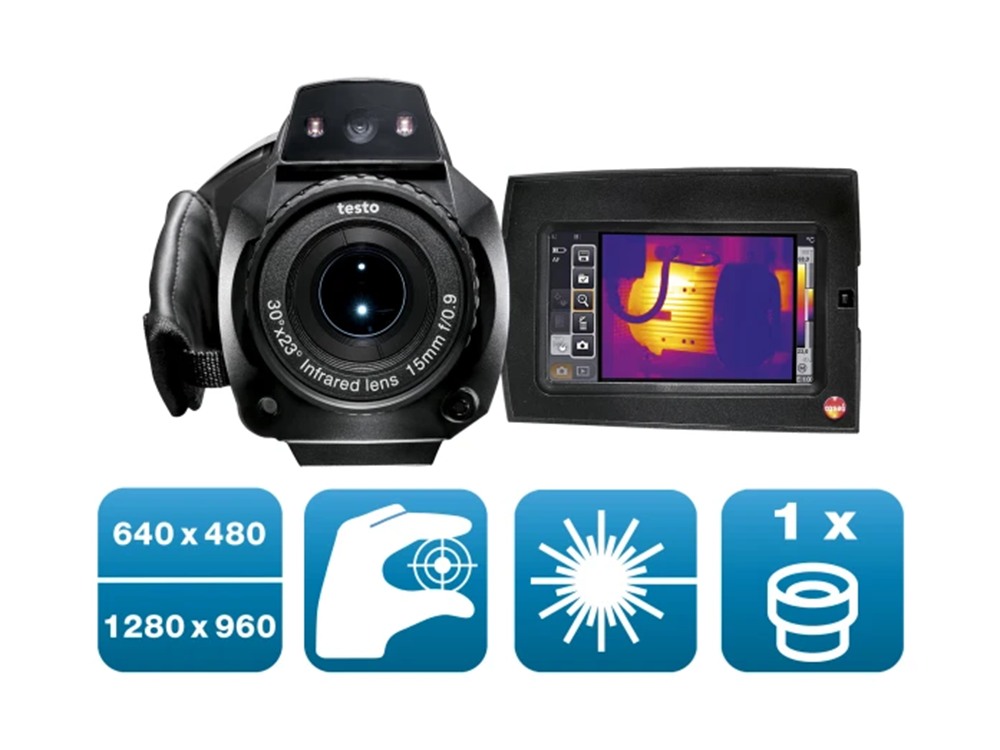

Testo 890-2 Thermal Imaging Camera, 640 x 480 FPA, NETD < 40 mK

  • NG # 01556-HW-TESTO-028

Thermal Imager for Building and Mechanical Applications. Features a 640 x 480 33Hz infrared detector with a <40mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 1280 x 960.

Manufactured By :
Testo
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Carry out damage-free tests on materials and components with the Thermal Imager Testo 890-2. Thanks to the 640 x 480-pixel detector the Testo 890-2 achieves the highest level of image quality. This allows for easy detection of weak spots and problems reliably in industrial and building thermography. With Testo's SuperResolution technology, the Testo 890-2 records extremely high-resolution images in megapixel quality (1280x960 pixels) for a high level of precision.

Specification


IR Resolution (Array Size) 307,200 (640 x 480)
Thermal Sensitivity < 0.04°C (40 mK)
Field of View 42° x 32° / 3.9" min. focus
Temperature Range -20 to 100°C (-4 to 212°F)
0 to 350°C (32 to 662°F)
350 to 1200°C (662 to 2192°F)
Accuracy ±2% rdg.
Measurement Modes Spot, area, auto hot/cold, Isotherm, average, surface moisture
Frame Refresh 33 Hz
Thermal Palettes 8
Focus Auto/Manual

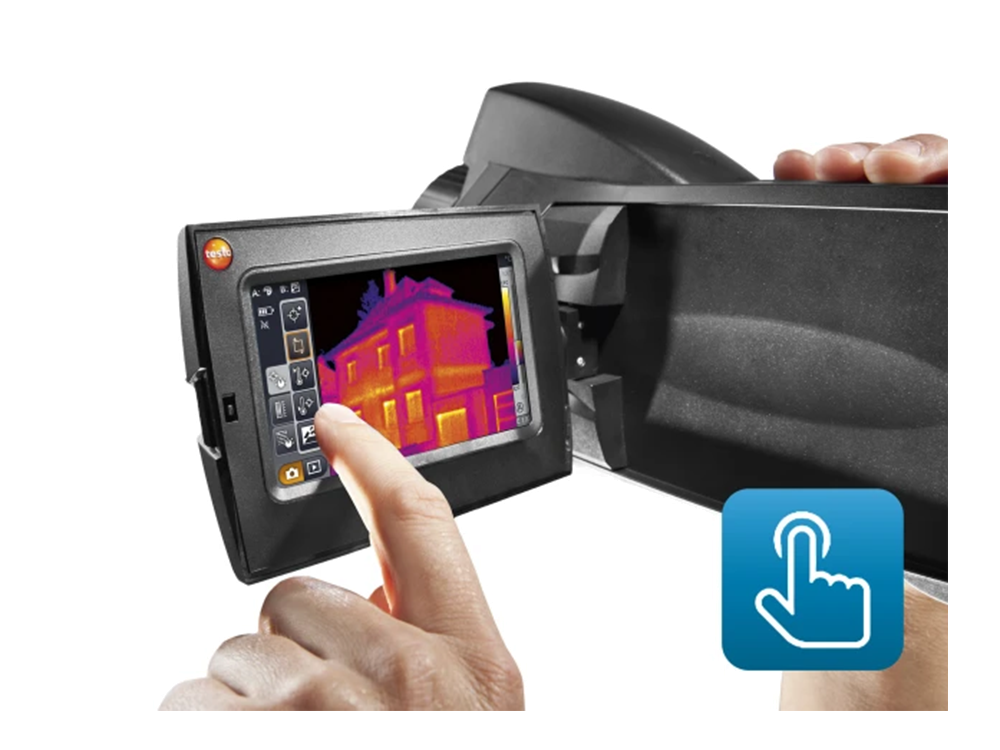

Display Screen 4.3" touchscreen
Visual Camera Yes
Digital Zoom 3x
Image Fusion Twin Pix
Picture-in-Picture Yes
Memory Storage 2GB SD card
Video Output Yes
Insulation Alarm Yes
Dewpoint Alarm Yes
Color Alarm Yes
LED Illuminator Yes
Video Recording Yes
Annotations Bluetooth

CATALOGS

Testo 890-2 Thermal Imaging Camera, 640 x 480 FPA, NETD < 40 mK Manual
