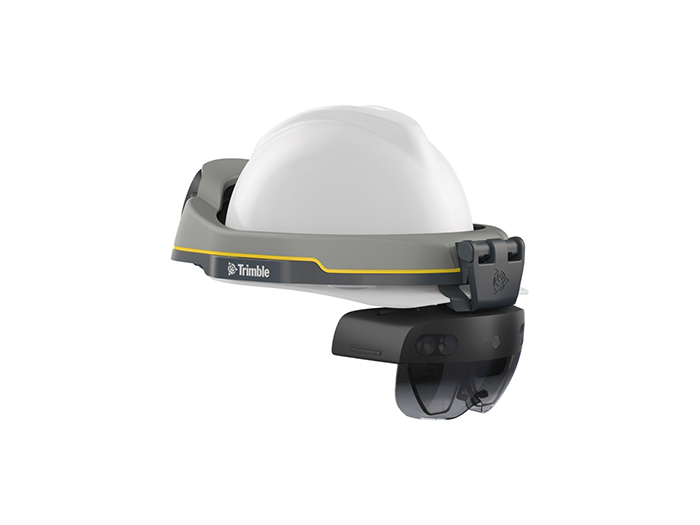

Trimble XR10 with HoloLens 2

  • NG # 00400-HW-TRIM-006

  • MF # XR10

Empower your field team with Trimble Connect's collaborative features and the mixed reality capabilities of HoloLens 2, fostering an open and interactive work environment.

Manufactured By :
Trimble
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Take advantage of cutting-edge technology on your worksites while keeping your staff safe with Trimble XR10 with HoloLens 2. Itʼs the only HoloLens 2-based solution compatible with an industry-standard hardhat and certified for use in safety-controlled environments.

Specification


  • Optics: See-through holographic lenses (waveguides)
  • Resolution: 2k 3:2 light engines
  •  Head tracking: 4 visible light cameras
  • Eye tracking: 2 IR cameras
  • Depth: 1-MP Time-of-Flight depth sensor
  • Camera: 8-MP stills, 1080p30 video
  •  Microphone array: 5 channels
  • Speakers: Mobilus mobiWAN_TR bone- conductive Bluetooth headset
  •  Storage: 64-GB UFS 2.1
  • WiFi: 802.11ac 2x2
  • Bluetooth: 5.0
  • Fit: Fits over glasses
  • Hardhat: Compatible with MSA V-Gard (Cap Style and Full Brim) with Fas-Trac III Suspension
  • Industry Standard Accessory Mounts:compatible with standard 3rd party accessories (earmuffs, chin straps,and more)Trimble XR10with HoloLens 2
  •  Hardhat Impact Protection: ANSI/ ISEA Z89.1-2014 Type 1, Class E (OSHA Compliant) || CSA Z94.1 || EN 397:2012 + A1:2012 || AS/NSZ 1801 || GB2811-2017
  • Intrinsic Safety: UL Class I, Division 2; UL 121201 & CSA C22.2 NO. 213
  • Visor Basic Impact Certification: ANSI Z87.1-2015; CSA Z94.3-07, EU EN 166, AS NZS 1337.1
  • Ingress Protection Rating: IP50 (dust protected)
  •  Weight: 0.79kg (1.75lbs) XR10 / 1.25kg (2.75bs) with hardhat and mobiWAN_TR
  • Operating Temperature: +10°C (+50°F) to +27°C (+81°F)
  • Storage Temperature: -20°C (-4°F) to +60°C (+140°F )
  • Operating/Storage Humidity: 8% to 90% RH (Relative Humidity)

CATALOGS

Trimble XR10 with HoloLens 2 Datasheet
