NG # 00100-HW-ZEB-032
ZT600 Series Industrial Printers have you covered today—and for years to come.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

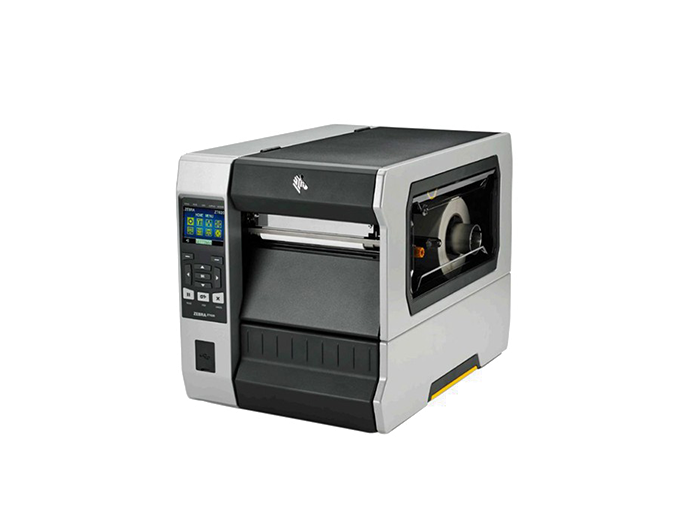

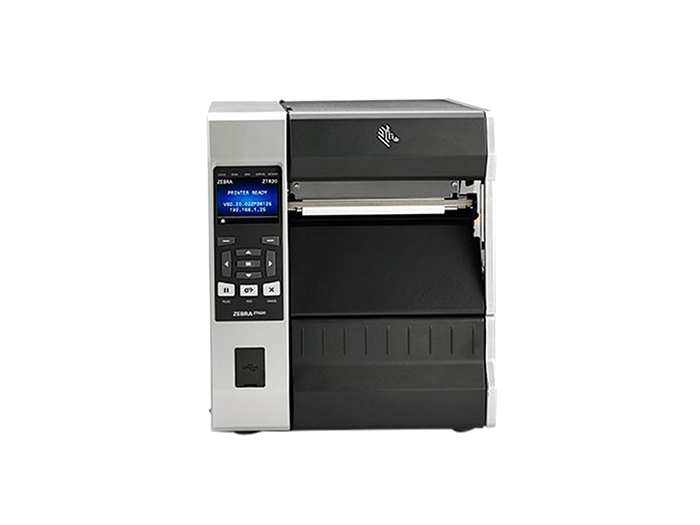

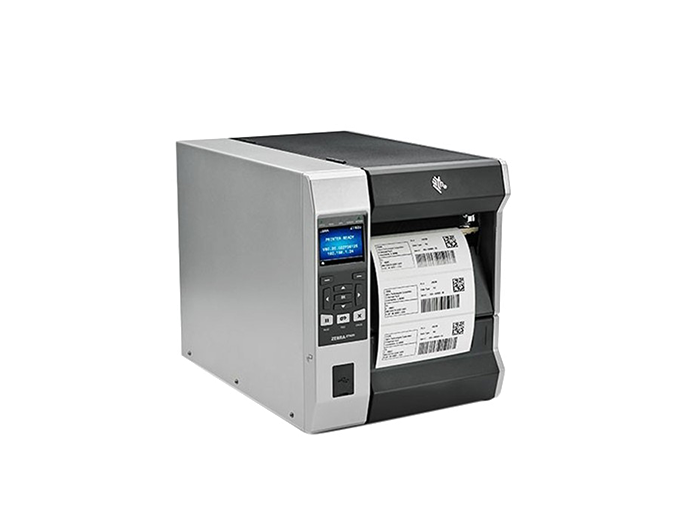

Get A QuoteAdvancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape
a game-changer in the realm of industrial thermal printing. This remarkable device takes the Zebra legacy to new heights, offering an unparalleled array of cutting-edge features within the Zebra stationary printer series. Crafted to endure the harshest industrial environments, the ZT610 is your solution to virtually eliminating operational downtime stemming from printer issues. Designed with you in mind, the ZT610 comes equipped with a user-friendly setup and intuitive Link-OS applications for seamless operation. It's not just a printer; it's a future-proof marvel, designed to adapt and evolve in the field, accommodating communications, media handling, and various upgrades.
| Product Type | Industrial Printer |
| Print Method | Thermal transfer and direct thermal printing |
| Body Material | Metal frame and bi-fold metal media cover |
| Sensors | Dual media sensors: transmissive and reflective |
| Memory | 1 GB RAM memory, 2 GB on-board linear Flash memory |
| Resolution | 203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional),600 dpi/24 dots per mm (optional for ZT610 only) |
| Print Speed | 14 ips/356 mm per second |
| Print Width | Continuous, die-cut, notch, black-mark |
| Media Type | Continuous, die-cut, notch, black-mark |
| Media Size | 8.0"/203 mm O.D. on a 3"/76 mm I.D. core |
| Media Thickness | 0.0023"/0.058 mm to 0.010"/0.25 mm |
| Ribbon Features | (Thermal-transfer option only) Standard Length : 1476'/450 m , Width : 2.00"/51 mm to 4.33"/110 mm, Core : 1.0"/25.4 mm I.D. |
| RFID Features | Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols , Integrated RFID system is user-upgradable in the field and available on both 4" and 6" models , Adaptive Encoding Technology automatically selects optimum encode s |
| Certification | IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2,EN 61000-3-3, cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM,S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro |
| Dimension | (LxWxH) 19.88x10.56x15.58 Inch |
| Weight | 50 lbs/22.7 kg |
Zebra ZT610 Industrial Printers Datasheet
