NG # 02087-HW-ZSPACE-001
The zSpace Laptop combines elements of Augmented Reality and
Virtual Reality to create lifelike experiences that inspire curiosity,
create engagement, and deepen understanding.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

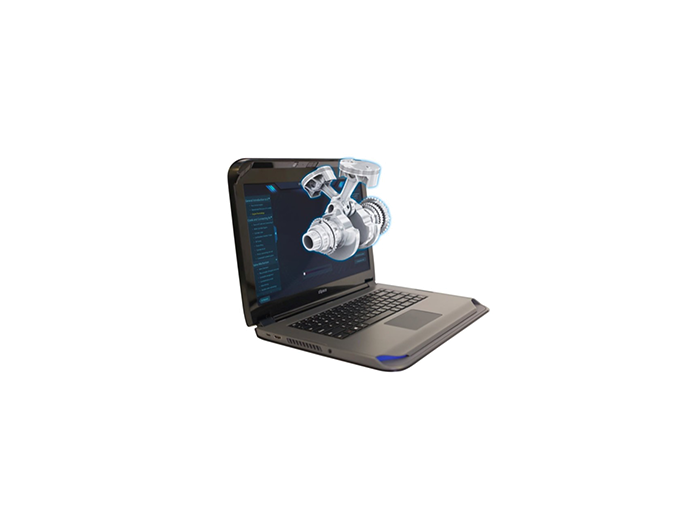

Get A QuoteThe zSpace laptop provides a unique, personalized experience that eliminates the barrier between the user and content by combining elements of augmented reality (AR) and virtual reality (VR) in one platform that allows the user to explore and create lifelike experiences.

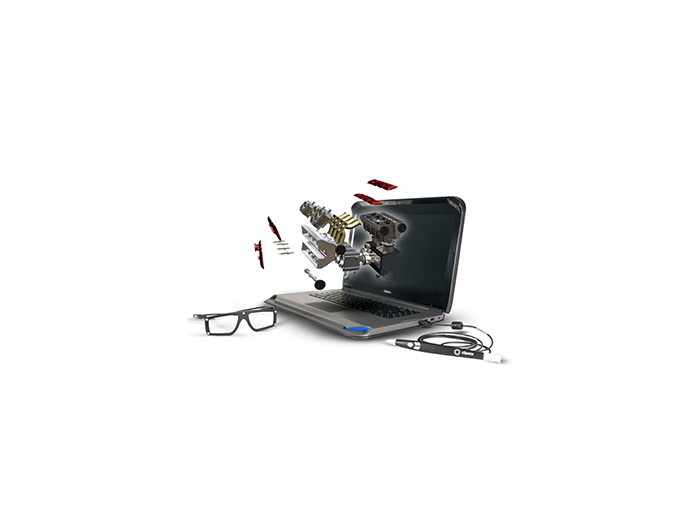

Glasses: Our Tracked Glasses work in conjunction with the zSpace Tracking System to provide the user with an interactive AR/VR experience. Follower Glasses allow others to join in and participate for a collaborative experience.

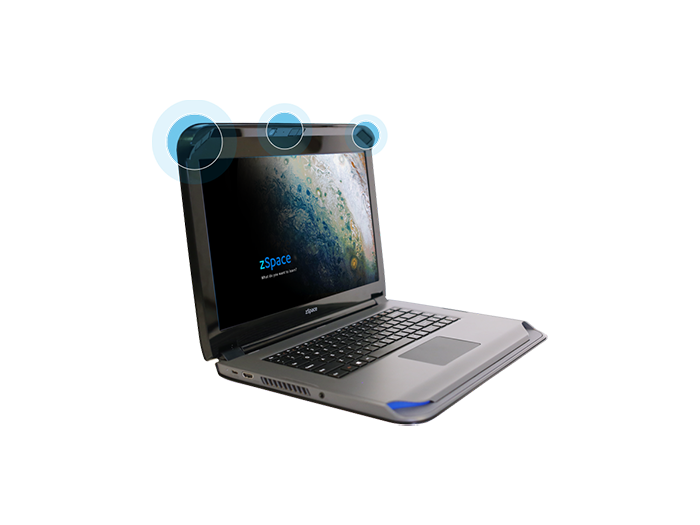

Tracking System: The zSpace Tracking System works with your Tracked Glasses and allows you to look around, under, and over a virtual object for a personalized and realistic experience.
Stylus: With the zSpace stylus, users can rotate their wrist naturally as they pick up and examine objects. The buttons on the stylus perform different actions depending on the zSpace application you are using.
| CPU | AMD APU A9-9420, 256 GB SSD, 8 GB DDR4 DRAM |
| GPU | AMD APU A9-9420 |
| Network | Wireless: 802.11a/b/g/n/ac + BT 4.1 M.2, 2230 Type Card |
| Resolution | 1920*1080 Full HD |
| Display Area | 13.5” H * 7.6” V, 15.6” D |
| Power Requirements | 20 V, 65 W power adapter included |
| Operating System | Windows 10 |
| Package Includes | Power adapter, Stylus, Polarized Tracked Eyewear (3D) |
| Size | height: 1 1/5 – 11 1/5” width: 15 3/8” depth: 10 3/4 – 21 1/4” |
| Operating Environment | Temperature: 10-35° C Humidity: 10-80% NC |
| Connectors | USB 3.0 – 2 ports (support BC1.2 spec) Audio input/output port HDMI port Kensington Lock Port Stylus input port USB-C (Support Power Delivery/USB3.0/ USB2.0/Display Port) |
Zspace Laptop Datasheet
