AxiDraw V3/A3

  • NG # 00100-HW-AXI-065

  • MF # 00100-HW-AXI-065

  • SKU # 00165-HW-AXI-065

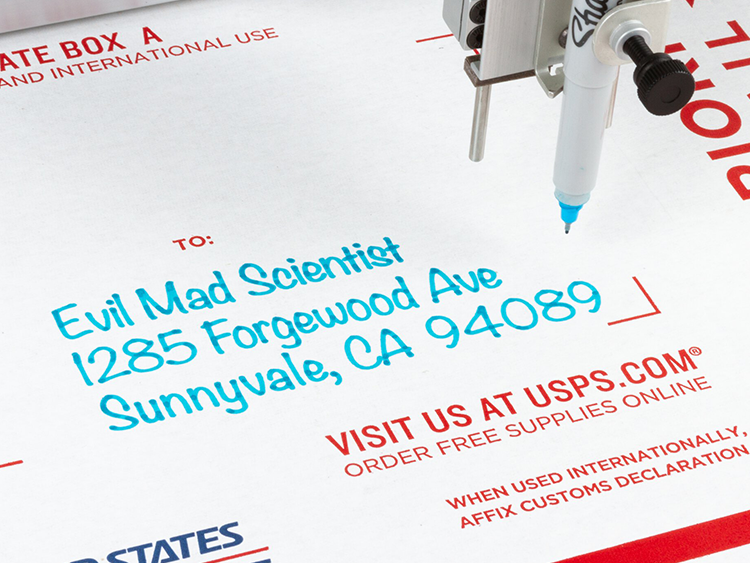

AxiDraw allows you to use your computer to produce writing that appears to be handmade, complete with the unmistakable appearance of using a real pen (as opposed to an inkjet or laser printer) to address an envelope or sign one's name. And it does so with precision approaching that of a skilled artist, and — just as importantly — using an arm that never gets tired.

Manufactured By :
AxiDraw
Need Help Ordering?
Call +88 01714243446

Stock
Stock Out

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Stock Out

Custom Pricing

Get A Quote

Overview

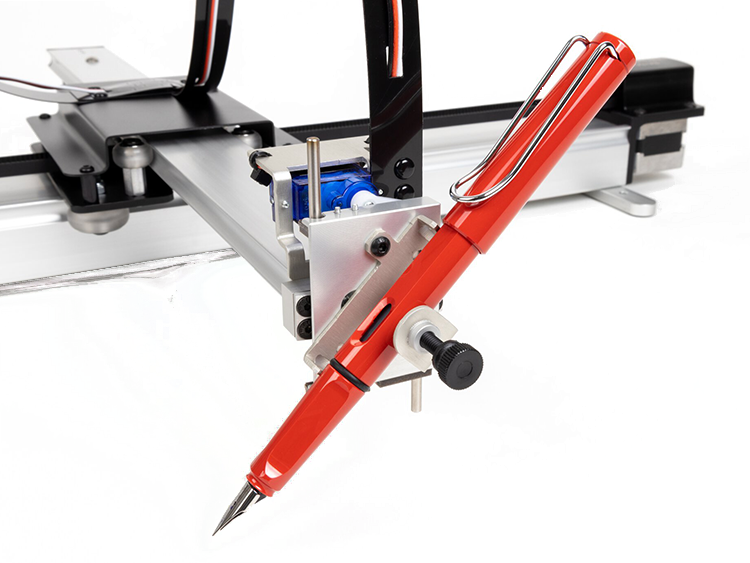

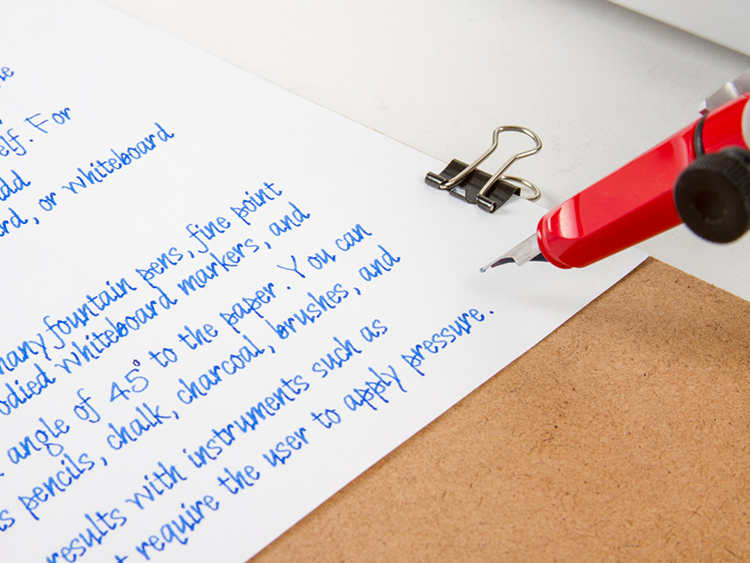

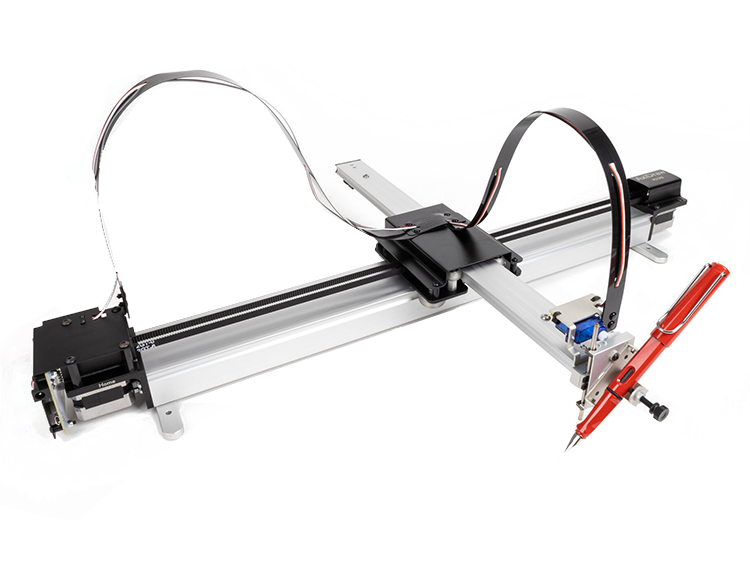

The AxiDraw is a simple, modern, precise, and versatile pen plotter, capable of writing or drawing on almost any flat surface. It can write with your favorite fountain pens, permanent markers, and other writing implements to handle an endless variety of applications. Its unique design features a writing head that extends beyond the machine, making it possible to draw on objects bigger than the machine itself.

Specification

Specification

Performance:

  • Usable pen travel (inches): 16.93 × 11.69 inches.
  • Usable pen travel (millimeters): 430 × 297 mm.
  • Vertical pen travel: 0.7 inch (17 mm).
  • Maximum XY travel speed: 15 inches (38 cm) per second.
  • Native XY resolution: 2032 steps per inch (80 steps per mm).
  • Reproducibility (XY): Typically better than 0.005 inches (0.1 mm) at low speeds.

Physical:

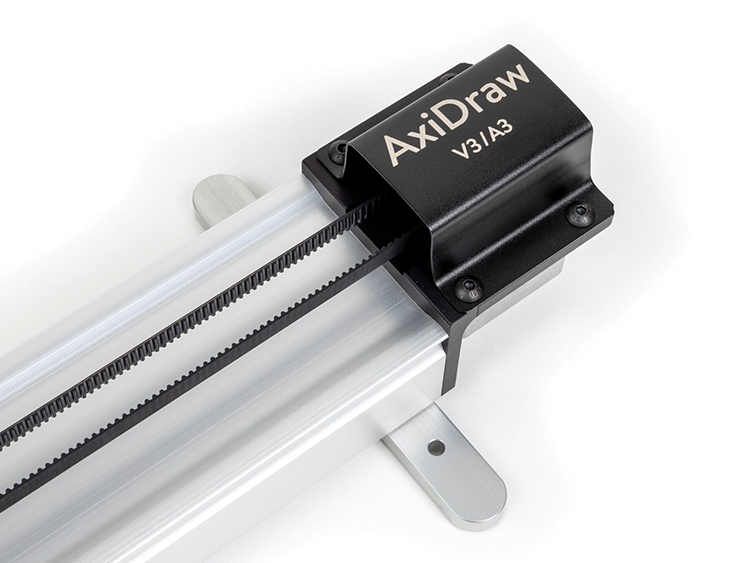

  • Major structural components are machined and/or folded aluminum.
  • Holds pens and other drawing instruments up to 5/8" (16 mm) diameter.
  • Overall dimensions: Approximately 26 × 18.5 × 4 inches (66 × 47 × 10 cm).
  • Maximum height with cable guides: Approximately 11 inches (29 cm).
  • Footprint: Approximately 26 × 5 inches (66 x 13 cm).
  • Physical weight: 5.5 Lb (2.5 kg).
  • Dimensional shipping weight: 39 Lb (17.5 kg).

Software:

  • Compatible with Mac, Windows, and Linux
  • Drive directly from within Inkscape, using the AxiDraw extension.
  • Comprehensive user guide available for download.
  • Driver software software free to download and open source
  • Internet access is required to download software.
  • Additionally, AxiDraw Merge software available at no cost to AxiDraw owners.

Programming interfaces:

  • Note: programming is not required to use the AxiDraw.
  • Stand-alone command line interface (CLI) .
  • Available AxiDraw python API.
  • RESTful API available for full machine control, stand-alone or accessible by running RoboPaint in the background.
  • Simplified "GET-only" API available as well, for use in programming environments (such as Scratch, Snap) that permit only retrieval of URLs.
  • Direct EiBotBoard (EBB) command protocol available for use in any programming environment that supports communication with USB-based serial ports.
  • Code that generates SVG files can also be used to (indirectly) control the machine.
