NG # 01540-HW-TESTO-013
MF # 01540-HW-TESTO-013
SKU # 01540-HW-TESTO-013

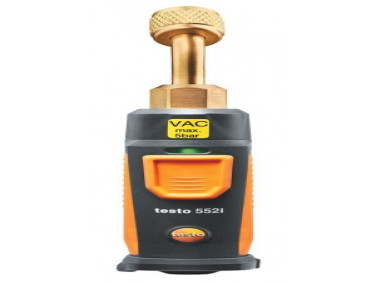

Features fast, easy, and accurate measurement of vacuum, this rugged probe has an integrated 45° angle for easy installation on any service part. Works on its own through the Smart App or automatically connects to the 550s and 557s digital manifolds through Bluetooth.
Stock
Limited
Custom Pricing
Get A Quote
Stock
Limited
Custom Pricing
Get A QuoteProvides the Smart Probes portfolio with the option of measuring vacuum wirelessly and via just one service port and requires no additional connections for measuring vacuum. With this in mind, it means there is minimal refrigerant loss when taking readings, prevents leaks, and you do not have to pull the vacuum through the manifold. The integrated 45° angle allows you to work flexibly at any service connection. Automatically connects to 550s or 557s manifolds via Bluetooth, and when used with the Smart App, the probe is also perfect for quick vacuum measurement on its own. All that is required for a fast service check is a phone or tablet, and the smart probe. Thanks to its proven quality and durability, you can rely on your wireless vacuum probe in any condition.
Specification
| Measuring Range | 0 to 20,000 μm (0 to 26.7 mbar) |
| Accuracy (±1 digit) | ±10 μm + 10% of m.v. (100 to 1000 μm) |
| Resolution | 1 μm (0 to 1000 μm) 10 μm (1000 to 2000 μm) 100 μm (2000 to 5000 μm) |
| Connection | 7/16" - UNF |
| Overload | 87 psi (relative: 72 psi) |
| Operating Temperature | -14 to 122°F (-25 to 50°C) |
| Storage Temperature | -4 to 122°F (-20 to 50°C) |
| Battery | Type: 3 x AAA batteries Life: 39 hrs |
| Auto Power Off | After 10 minutes when not connected via Bluetooth |
| Bluetooth Range | Up to 425' |
| Compatibility | Bluetooth 5.0 |
| Protection Class | IP54 |
| Dimensions | 5.9 x 1.3 x 1.2" (149.86 x 33.02 x 30.48 mm) |
| Weight | 5 oz (141.7 g) |
