Keystone Pipe Handling Tools Beckets & Bails

  • NG # 00100-HW-KEY-001

  • MF # 00100-HW-KEY-053

  • SKU # 00153-HW-KEY-053

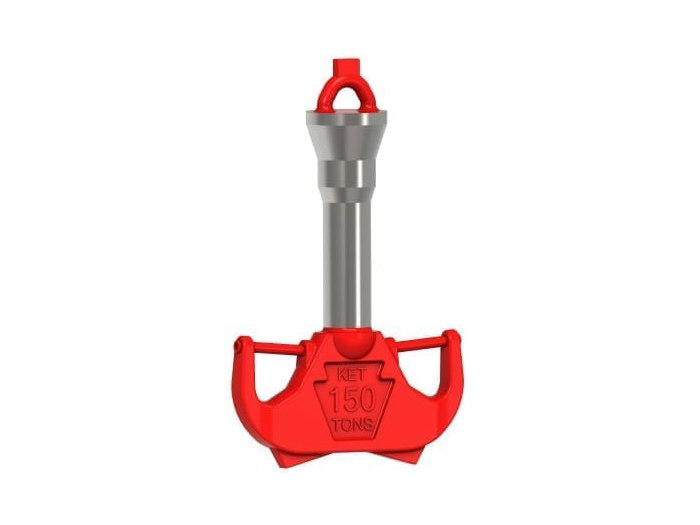

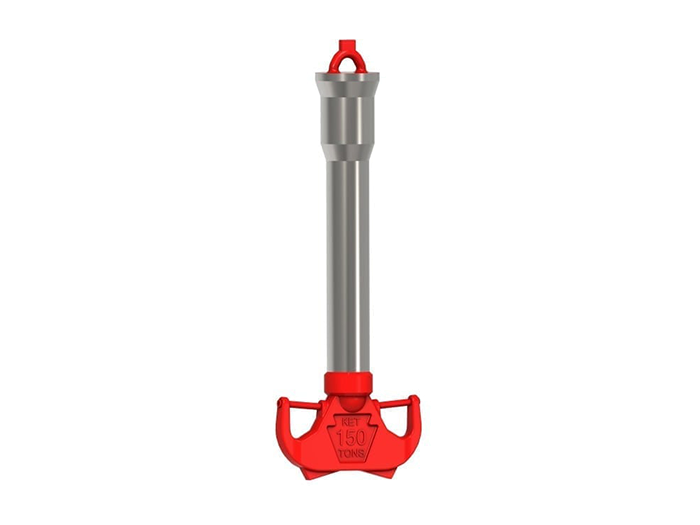

KET manufactures two different beckets, the standard that can be used with standard drill pipe elevators from 3 ½” – 5 ½” and the Extended shank especially designed for tall hydraulic elevators from 5” – 6 5/8”. Perfection Links are also offered in lengths 36” – 42” in ratings of 100 & 150 ton capacity.

Manufactured By :
KeyStone
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

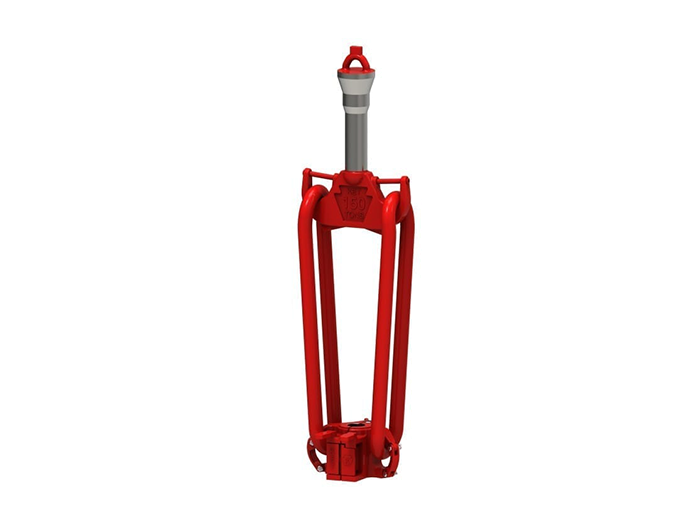

The becket is an inverted U-shaped bar used to suspend pipe elevators from ears of the traveling block. Bails are made of straight rods that have eyes on both ends. These bails come in two sets that are attached to the elevator. Essentially, one eye of each bail is attached to the becket through two holes on each side (ears), while the other ends are attached to the elevator. If the beckets are attached to the traveling block, they can be kept away from an elevator currently in use to lower the pipe into the ground. The resulting working distance allows for more room for the crew to work with, reducing risk for injury. This is the most valuable benefit from using beckets and bails.

Specification

Specification

Part No. Description Weight
E31189-120-124 Standard 150 Ton “DC” Becket for 120-124 Bore Codes 175.00
E31189-120-124-XL Extended Shank 150 Ton “XLDC” Becket for 120-124 Bore codes 371.00
 E31189-123-740 – XL Extended Shank 150 Ton “XLDC” Becket for 123-740 Bore codes 425.00
E70508-1036 2″ X 36″ 100 Ton Perfection Link Bails 125.00
E70508-1042 2″ X 42″ 100 Ton Perfection Link Bails 150.00
E70508-1542 2-1/2″ X 42″ 150 Ton Perfection Link Bails 175.00



Other KeyStone Products

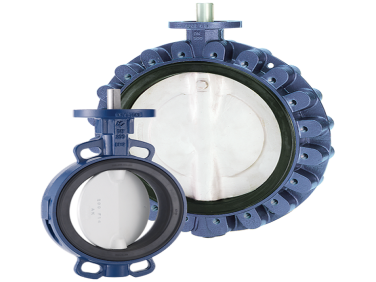

Keystone Model ParaSeal Butterfly Valves

KeyStone Industrial Tools & Accessories 02991-HW-KEY-003

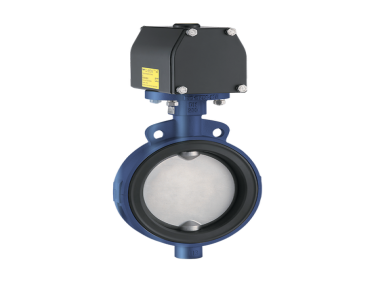

Keystone K-LOK Figure 360/362 and 370/372 High Performance Butterfly Valve with Powered Actuator

KeyStone Industrial Tools & Accessories 02997-HW-KEY-009

Keystone Figure 990/920 Butterfly Valve with Manual Actuator

KeyStone Industrial Tools & Accessories 03000-HW-KEY-012

Keystone Figure 221/222 Butterfly Valve with Manual Actuator

KeyStone Industrial Tools & Accessories 02996-HW-KEY-008

Keystone Optiseal Resilient Seated Butterfly Valve with Powered Actuator

KeyStone Industrial Tools & Accessories 02999-HW-KEY-011

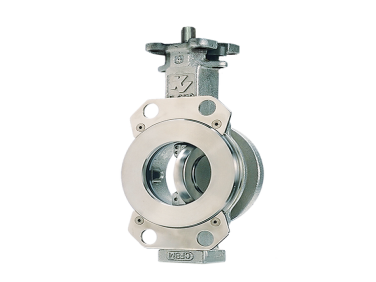

Keystone Series V30/V32 High Performance Butterfly Valves
