Honeywell E-Mon™ PowerSmart+ Essential Meter

  • NG # 01164-HW-HNWEL-190

  • SKU # 01164-HW-HNWEL-190

A versatile power meter capable of measuring over 100 energy parameters, designed for revenue metering, power quality assessment, and harmonic analysis.

Manufactured By :
Honeywell
Need Help Ordering?
Call +88 01714243446

Stock
5 in stock

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
5 in stock

Custom Pricing

Get A Quote

Overview

The E-Mon PowerSmart+ Essential meter is a multifunctional power meter measuring over 100 energy parameters for revenue metering, power quality and harmonic analysis. The device can be integrated in panel

Specification

  • Class 0.5S IEC 62053-22 four quadrant active and reactive energy polyphase static meter
  • Ampere/Volt demand meter with TrueRMS, power, power factor, neutral current, voltage and current unbalanced frequency
  • Dual Panel mounting configuration for 4” round or 96x96 DIN new or retrofit installations
  • High-precision 3-phase meter monitoring
  • 3.5” monochromatic LCD display with 240x128 dots resolution, adjustable update time, backlit, and user-defined brightness settings
  • LED bar graph showing percent load with respect to user-definable nominal load current
  • Supplied with E-Mon Power Software for meter set up and power quality analysis (requires RS-485 key for communication)
  • Voltage and current THD, current TDD, and K-Factor, up to 40th-order harmonic
  • Voltage and current harmonic spectrum and angles
  • Real-time “scope mode” waveform monitoring capability
  • Simultaneous 6-channel one-cycle waveform capture at a rate of 64 samples per cycle
  • 3 voltage inputs and 3 current transformer-isolated AC inputs for direct connection to the power line or via potential and current transformers.
  • Current Sensor Options: Available with integrated 5 Amp current sensors for use with existing 5 Amp output current transformers or Available as a meter-only configuration for use with PowerSmart+ current sensors. Current sensor leads can be extended up to 500 feet for remote installation (sold separately, see PowerSmart+ current sensor spec for details.)
  • Standard 2-wire RS-485 communication port; Modbus RTU, DNP3 and ASCII communication protocols
  • Optional Ethernet 10/100BaseT port for Modbus TCP/IP communication
  • Optionally available pre-installed inside a JIC steel enclosure with a lockable window panel and 3-phase voltage terminal block. Dimensions: 9.06” H x 23.62” W x 6.1” D
  • •Three-phase total and per-phase energy measurements; active, reactive, and apparent energy counters
  • Time-of-use, 4 totalization and tariff energy/demand registers x 8 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day
  • Automatic daily energy and maximum demand profile log for total and tariff registers
  • 16 control setpoints; programmable thresholds and delays
  • 1-cycle response time
  • Non-volatile memory for long-term event and data recording
  • Event recorder for logging internal diagnostic events and setup changes. Two data recorders; programmable data logs on a periodic basis; automatic daily energy and maximum demand profile log
  • Auto-scroll option with adjustable page exposition time; auto-return to a default page

Other Honeywell Products

Honeywell E-Mon™ Multi-Mon Branch Circuit RS485 IP Smart Meter
Honeywell Industrial Tools & Accessories 01172-HW-HNWEL-198 01172-HW-HNWEL-198

Honeywell Converter RS232/RS485
Honeywell Computer & Electronics 01308-HW-HNWEL-234 01308-HW-HNWEL-234

Honeywell E-Mon™ Class 5000 3-Phase RS485 IP Green Net Smart Meter
Honeywell Industrial Tools & Accessories 01162-HW-HNWEL-188 01162-HW-HNWEL-188

Honeywell Digital OTC Heating Controller
Honeywell Computer & Electronics 00989-HW-HNWEL-109 00989-HW-HNWEL-109

Honeywell E-Mon™ Class 2000 Green Pulse Meter
Honeywell Industrial Tools & Accessories 01166-HW-HNWEL-192 01166-HW-HNWEL-192

Honeywell Media Converter
Honeywell Computer & Electronics 01316-HW-HNWEL-242 01316-HW-HNWEL-242

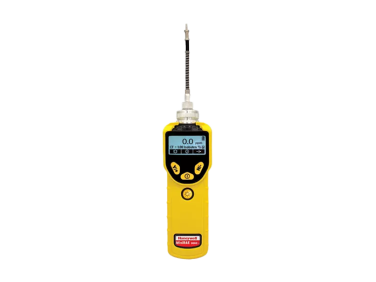

HoneyWell MiniRAE 3000 +
