Series-HM35 Digital Pressure Manometer, 0.05% Accuracy, Data Logging, PC Transfer

  • NG # 03344-HW-Omega-024

Manufactured By :
ecom

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

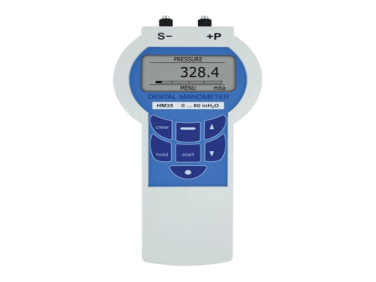

The Series HM35 Precision Digital Pressure Manometer is designed to reliably measure and log absolute pressure, differential pressure, or gage pressure with up to 0.05% accuracy. The data logging function can store up to 10,742 readings and transmit the readings to a PC through an IR serial port. The large display can graphically display trends in the data as well as peaks and valleys. Calibration certification included.

Specification

Service:
Air and compatible gases.
Wetted Materials:
18/8 stainless steel.
Accuracy:
(Includes linearity, hysteresis, and repeatability): Depending on model. ±0.20% full-scale ±1 digit; ±0.10% full-scale ±1 digit; ±0.05% full-scale ±1 digit.
Temperature Limits:
32 to 122°F (0 to 50°C).
Storage Temperature:
-4 to 140°F (-20 to 60°C).
Humidity:
Maximum 95% RH non-condensing.
Display:
Graphical back lit LCD. 128 x 64 points.
Power Requirements:
(3) 1.5 V AA alkaline batteries, installed functional, user replaceable. Can operate on 6 to 9 VDC external power.
Current Consumption:
25 mA without back lit display, IR, or buzzer.
Memory:
10,742 readings. Recording intervals adjustable from 1 second to 24 hours or manual.
Case Protection:
IP54 (NEMA 3).
Weight:
10.5 oz (300 g).
Process Connections:
Hose 4/6 mm or 1/8" NPT.
Agency Approvals:
CE.
