NG # 09330007-HW-BRAY-007

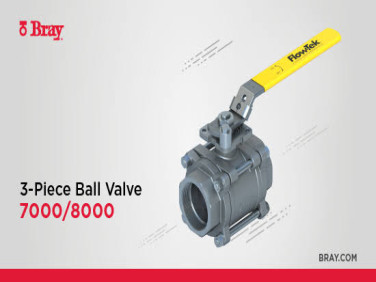

3-Piece Ball Valve – Series 7000/8000 is a full-port industrial ball valve designed for reliable flow isolation and flexible installation. Its three-piece construction supports convenient maintenance, while multiple end connections, durable materials, and actuator-ready mounting provide adaptable performance across industrial applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Series 7000/8000 3-Piece Ball Valve is available in sizes from NPS ¼ to 12 (DN 8–300), offering a practical solution for demanding flow-control systems. Series 7000 uses CF8M stainless steel, while Series 8000 uses WCB, with 316 stainless-steel stems and CF8M balls. Seat options include RPTFE, TFM 1600, Tek-Fil®, and UHMWPE, with threaded, socket-weld, butt-weld, and Class 150 flanged connections available.
Size Range: NPS ¼–12, DN8–DN300
Body Materials: Series 7000: CF8M; Series 8000: WCB
Temperature Range: -50°F to 550°F (-46°C to 287°C)
Stem Material: 316 Stainless Steel
Maximum Operating Pressure: NPS ¼–4: 1000 psi CWP (69 bar); NPS 6–12: 400 psi CWP (27 bar)
Seat Materials: RPTFE; Optional: TFM 1600, Tek-Fil®, UHMWPE, Cavity Fillers
Ball Material: CF8M Stainless Steel
Body Style: 3-Piece
Design Standard: MSS SP-110
End Connections: Threaded ASME B1.20.1 NPT, Socket Weld ASME B16.11, Butt Weld MSS SP-72/ASME B16.25, Flanged ASME Class 150, Extended Socket Weld, Extended Butt Weld
Testing Standard: API 598, MSS SP-72
Ports: Full Port
Certifications: 7000/8000: ATEX, CRN, PED, PE(S)R, TR CU, SIL; 7000: NSF 61/372
Face-to-Face: NPS ¼–4: Manufacturer Standard; NPS 6–12: ASME B16.10
Steam Rating: Up to 425 WSP
Fugitive Emissions Standard: EN ISO 15848-1
